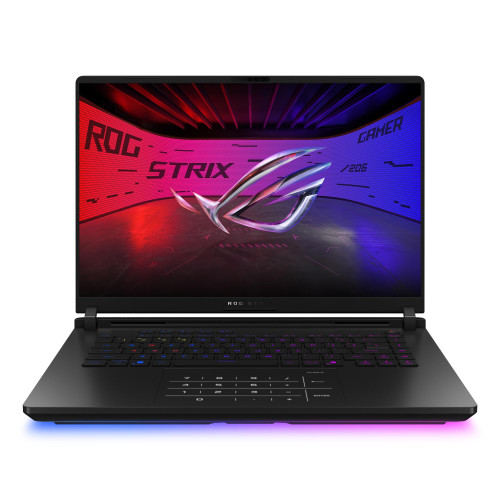

ROG Strix SCAR 16 (2025)

Technical Specifications

• Description:

  The best of the best
  The 2025 Strix SCAR 16 offers the very best Windows 11 Pro gaming experience, featuring up to Intel Core Ultra 9 processor 275HX and up to NVIDIA GeForce RTX 5090 Laptop GPU with NVIDIA Max-Q technologies, including Advanced Optimus. This killer hardware is complemented with up to 64GB of 5600MHz DDR5 RAM and 4TB of PCIe 4.0 storage, with the memory slots upgradable to 6400MHz DDR5 RAM and SSD slots both offering full support for PCIe Gen 5, ensuring that you always have the edge on your competition.

  • No OS
  • Intel Core Ultra 9 275HX (36MB Cache)
  • 40.6 cm (16") WQXGA 2560 x 1600 Mini LED, NVIDIA GeForce RTX 5090 (24GB GDDR7)
  • 64GB (5600MHz) DDR5-SDRAM (2 x 32) & 2000GB SSD

• Summary: ASUS ROG Strix SCAR 16 G635LX-RW059. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 275HX. Display diagonal: 40.6 cm (16"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 64 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5090. Product colour: Black. Weight: 2.8 kg
• Vendor Homepage: https://rog.asus.com/laptops/rog-strix/rog-strix-scar-16-2025/
• Name: NB G635LX CU9-275HX 16" 64GB/2TB G635LX-RW059 ASUS
• Category Code: NB
• NB Family name: ROG Strix
• Model name: SCAR 16 (2025)
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 275HX
• Processor cores: 24
• Processor threads: 24
• Processor boost frequency: 5.4
• Performance cores: 8
• Efficient cores: 16
• Performance-core Max Turbo Frequency: 5.4
• Efficient-core Max Turbo Frequency: 4.6
• Performance-core base frequency: 2.7
• Efficient-core base frequency: 2.1
• Processor cache: 36
• Maximum turbo power: 160
• Processor base power: 55
• Display diagonal: 16
• Display resolution: 2560 x 1600
• Panel type: Mini LED
• HD type: WQXGA
• Touchscreen: No
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Colour gamut: 100
• RGB colour space: DCI-P3
• Display response rise/fall: 3
• Maximum refresh rate: 240
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: Dolby Vision
• Colour name: Off Black
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Market positioning: Gaming
• Introduction year: 2025
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 36
• NPU performance up to: 13
• GPU performance up to: 8
• Internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 2 x 32
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64
• Memory channels: Dual-channel
• Total storage capacity: 2000
• Storage media: SSD
• Total SSDs capacity: 2000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: No
• Card reader integrated: No
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5090
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 24
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• NVIDIA G-SYNC: Yes
• Audio system: Smart Amp
• Number of built-in speakers: 4
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000/2500
• Bluetooth: Yes
• Bluetooth version: 5.4
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 5 ports quantity: 2
• Intel Thunderbolt 5: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB Type-C DisplayPort Alternate Mode: Yes
• Motherboard chipset: Intel HM870 Express
• Repairability index: 9.9
• Pointing device: NumberPad
• Keyboard backlit: Yes
• Numeric keypad: No
• Keyboard backlit colour: RGB
• Keyboard backlit zone: Per-key RGB
• Copilot key: Yes
• Operating system installed: No
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 90
• Fast charging: Yes
• Fast charging time (50%): 30
• AC adapter power: 380
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 19
• AC adapter output voltage: 20
• DC-in jack: Yes
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Face recognition: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Password protection: Yes
• Password protection type: BIOS/User
• Width: 354
• Depth: 268
• Height (front): 22.8
• Height (rear): 30.8
• Weight: 2800
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01518
• Unit Calculated Weight: 6
