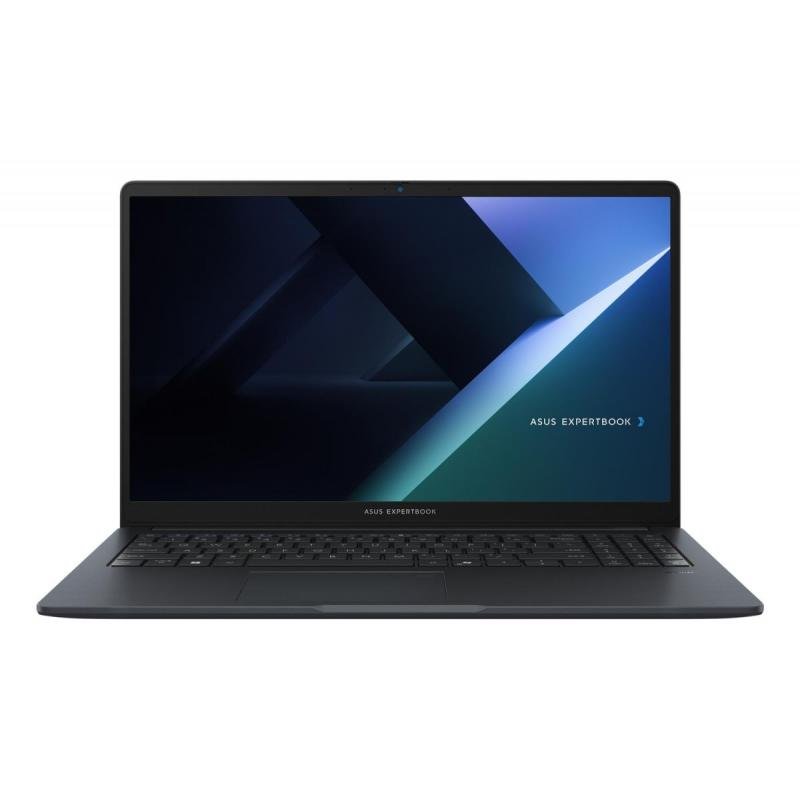

ExpertBook BM1 BM1503CDA-S70288

Technical Specifications

• Summary: ASUS ExpertBook BM1 BM1503CDA-S70288. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen 7, Processor model: 7735U, Processor frequency: 2.7 GHz. Display diagonal: 39.6 cm (15.6"), HD type: Full HD, Display resolution: 1920 x 1080 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 512 GB, Storage media: SSD. On-board graphics card model: AMD Radeon 680M. Product colour: Grey. Weight: 1.64 kg
• Vendor Homepage: https://www.asus.com/laptops/for-work/expertbook/asus-expertbook-bm1-bm1503/
• Name: NB BM1503CDA R7-7735U 15"/32/512GB BM1503CDA-S70288 ASUS
• Category Code: NB
• NB Family name: ExpertBook
• Model name: BM1503CDA
• Model: BM1503CDA-S70288
• Processor manufacturer: AMD
• Processor family: AMD Ryzen 7
• Processor generation: AMD Ryzen 7000 Series
• Processor model: 7735U
• Processor cores: 8
• Processor threads: 16
• Processor boost frequency: 4.75
• Processor frequency: 2.7
• Processor cache type: L2 & L3
• L3 cache: 16
• L2 cache: 4
• Display diagonal: 15.6
• Display resolution: 1920 x 1080
• HD type: Full HD
• LED backlight: Yes
• Native aspect ratio: 16:9
• Anti-glare screen: Yes
• Display brightness: 300
• Colour gamut: 45
• RGB colour space: NTSC
• Maximum refresh rate: 60
• Colour name: Gentle Grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Plastic
• Market positioning: Work
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory form factor: SO-DIMM
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card family: AMD Radeon
• On-board graphics card model: AMD Radeon 680M
• Audio system: Dirac
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: HD
• Front camera resolution: 1280 x 720
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 1.4
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad
• Numeric keypad: Yes
• Keyboard layout: QWERTY
• Keyboard language: US International
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 3
• Battery capacity: 50
• AC adapter power: 65
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 3.25
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/HDD/User
• Compliance certificates: REACH
• Sustainability certificates: ENERGY STAR/EPEAT Climate +/Forest Stewardship Council (FSC) Recycled/TCO
• Width: 359.5
• Depth: 232.2
• Height: 19.9
• Weight: 1640
• Package width: 506
• Package depth: 76
• Package height: 301
• Package weight: 4263
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01125
• Unit Calculated Weight: 2.6
