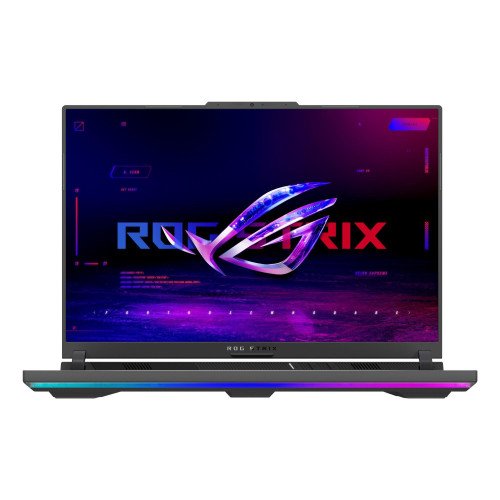

ROG Strix G614PM-RV089

Technical Specifications

• Vendor Homepage: rog.asus.com/laptops/rog-strix/rog-strix-g16-2025-g614/
• Name: NB G614PM R9-8940HX 16"/32GB/1TB G614PM-RV089 ASUS
• Category Code: NB
• NB Family name: ROG Strix
• Model name: G16 (2025)
• Model: G614PM-RV089
• Processor manufacturer: AMD
• Processor family: AMD Ryzen 9
• Processor generation: AMD Ryzen 8000 Series
• Processor model: 8940HX
• Processor cores: 16
• Processor threads: 32
• Processor boost frequency: 5.3
• Processor frequency: 2.4
• Processor cache type: L2 & L3
• L3 cache: 64
• L2 cache: 16
• Display diagonal: 16
• Display resolution: 1920 x 1200
• Panel type: IPS-Level
• HD type: Full HD+
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Colour gamut: 100
• RGB colour space: sRGB
• Display response rise/fall: 3
• Maximum refresh rate: 165
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: Dolby Vision
• Colour name: Eclipse Gray
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Market positioning: Gaming
• Introduction year: 2025
• Internal memory: 32
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5200
• Memory form factor: SO-DIMM
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5060
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card family: AMD Radeon Graphics
• On-board graphics card model: AMD Radeon 610M
• NVIDIA G-SYNC: Yes
• Number of built-in speakers: 2
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB4 Gen 3x2 ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB Type-C DisplayPort Alternate Mode: Yes
• Keyboard backlit: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 4-zone RGB
• Keyboard language: English
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 90
• Fast charging: Yes
• Fast charging time (50%): 30
• AC adapter power: 280
• Width: 354
• Depth: 264
• Height (front): 22.6
• Height (rear): 30.4
• Weight: 2500
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01419
• Unit Calculated Weight: 4
