  • ? Intel Core Ultra 7 356H
  • ? NVIDIA GeForce RTX 5060
  • ? 32GB DDR5
  • ? 1000GB SSD NVMe
  • ? 15.3" 15.3" 2560 x 1600
104,218ден.
  • Достапност: Нема на залиха
  • Шифра: 457360
  • Гарантен рок: 24 месеци
  • Достава: 13-16 дена
Сподели
Specifications
AC adapter included Yes
AI software frameworks supported by NPU DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
Category Code NB
Certification ErP Lot 6/26 TÜV Rheinland® Flicker Free TÜV Rheinland® High Gaming Performance TÜV Rheinland® Low Blue Light (Hardware Solution)
Compliance certificates RoHS
Description

  • Intel Core Ultra 7 356H, 16C (4P + 8E + 4LPE)/16T, Max Turbo up to 4.7GHz, 18MB Intel Smart Cache
  • 15.3" WQXGA (2560x1600) OLED 1000nits (peak) / 500nits (typical) Glossy 100% DCI-P3 165Hz G-SYNC DisplayHDR True Black 1000
  • 2x 16GB SODIMM DDR5-5600
  • 1TB SSD M.2 2242 PCIe 4.0x4 NVMe
  • NVIDIA GeForce RTX 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS
  • No OS

GPU performance up to 40
Maximum shipping altitude 3048

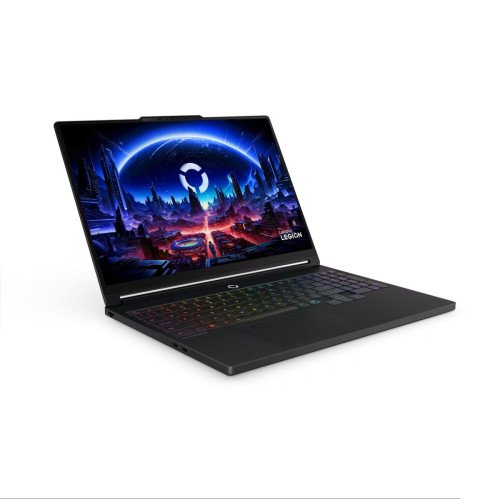

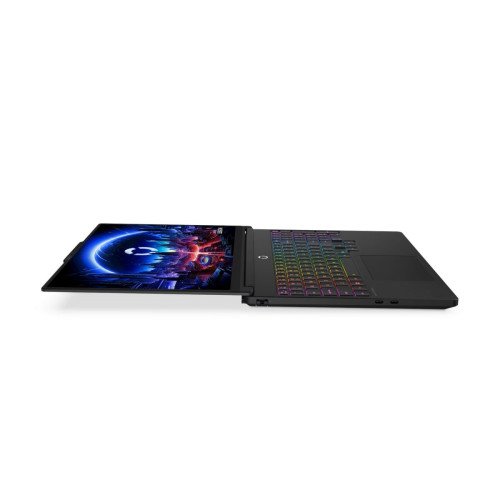

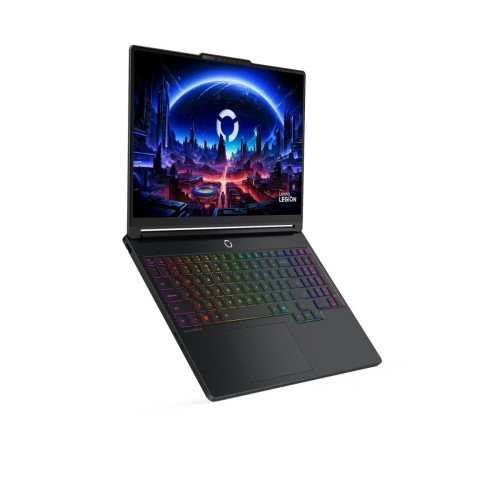

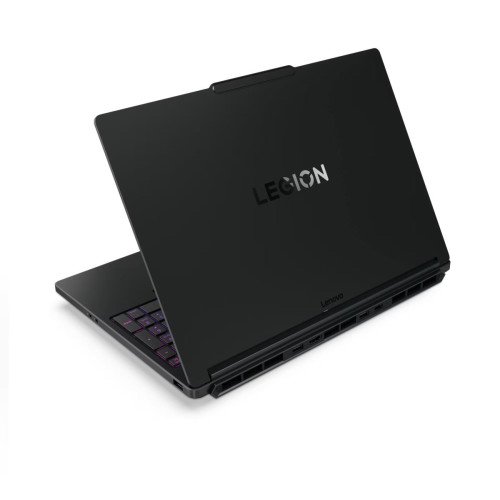

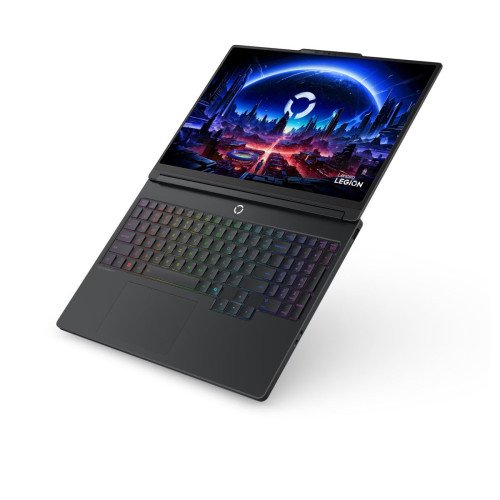

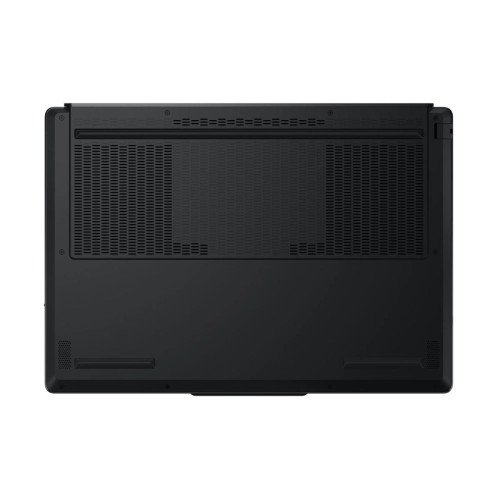

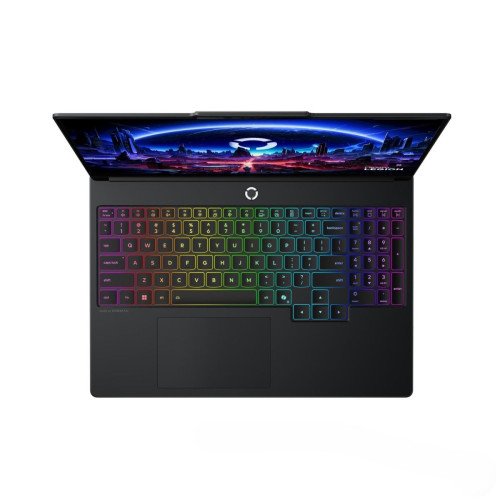

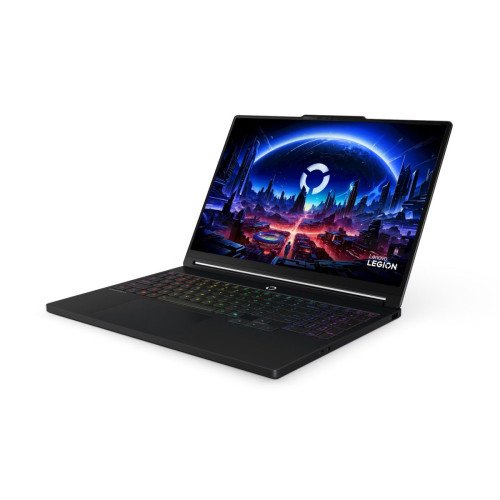

Model name Legion 5 15IPH11
Motherboard chipset Intel SoC
Name NB L5-15IPH11 CU7-356H 15"/32GB/1TB 83RW001WRM LENOVO
NB Family name Legion
Neural processor unit (NPU) Intel AI Boost
NPU performance up to 50
Operating relative humidity (H-H) 8 - 95
Operating temperature (T-T) 5 - 35
Sparsity support Yes
Storage relative humidity (H-H) 5 - 95
Storage temperature (T-T) 5 - 43
Summary Lenovo Legion 5 15IPH11. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 356H. Display diagonal: 38.9 cm (15.3"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5060. Product colour: Black. Weight: 1.87 kg
Unit Calculated Volume 0.01426
Unit Calculated Weight 5
Units per Pallet 0
Units per Shipping Box 1
Vendor Homepage https://www.lenovo.com/
Windows Studio effects support Yes
PictureUrl https://static.elko.cloud/ProductImages/d81d7630-0dfe-4eea-8090-940a35a7ec61.Jpeg
thumbnailImagePath https://static.elko.cloud/ProductImagesThumbs/d81d7630-0dfe-4eea-8090-940a35a7ec61.Jpeg
Процесор
Efficient cores 8
Efficient-core base frequency 1.5
Efficient-core Max Turbo Frequency 3.7
Low Power Efficient-core Base Frequency 1500
Low Power Efficient-core Max Turbo Frequency 3.3
Low Power Efficient-cores 4
Maximum turbo power 80
Performance cores 4
Performance-core base frequency 1.9
Performance-core Max Turbo Frequency 4.7
Processor base power 25
Processor boost frequency 4.7
Processor cache 18
Processor cores 16
Processor family Intel Core Ultra 7
Processor generation Intel® Core™ Ultra (Series 3)
Processor manufacturer Intel
Processor model 356H
Processor threads 16
Графика
Discrete graphics card Yes
Discrete graphics card memory 8
Discrete graphics card model NVIDIA GeForce RTX 5060
Discrete graphics memory type GDDR7
On-board GPU manufacturer Intel
On-board graphics card Yes
On-board graphics card family Intel® Graphics
On-board graphics card model Intel® Graphics
Меморија (RAM)
Internal memory 32
Internal memory type DDR5-SDRAM
Maximum internal memory 32
Memory channels Dual-channel
Memory clock speed 5600
Memory form factor SO-DIMM
Memory layout (slots x size) 2 x 16
Memory Slots 2x SO-DIMM
Диск (SSD/HDD)
M.2 SSD size 2242 (22 x 42 mm)
Number of SSDs installed 1
NVMe Yes
SSD Capacity 1000
SSD form factor M.2
SSD interface PCI Express 4.0
Storage media SSD
Total SSDs capacity 1000
Total storage capacity 1000
Екран
Colour gamut 100
Display brightness 1000
Display diagonal 15.3
Display resolution 2560 x 1600
Display surface Gloss
HD type WQXGA
LED backlight Yes
Maximum refresh rate 165
Native aspect ratio 16:10
Panel type OLED
RGB colour space DCI-P3
Мрежа и Конекција
Antenna type 2x2
Bluetooth Yes
Bluetooth version 5.4
Ethernet LAN Yes
Ethernet LAN data rates 100/1000
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi standards Wi-Fi 7 (802.11be)
WWAN Not installed
Портови и Интерфејси
Combo headphone/mic port Yes
Ethernet LAN (RJ-45) ports 1
HDMI ports quantity 1
HDMI version 2.1
Intel® Thunderbolt 4 Yes
Thunderbolt 4 ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB Sleep-and-Charge Yes
USB Sleep-and-Charge ports 1
USB Type-C DisplayPort Alternate Mode Yes
Тастатура
Keyboard backlit Yes
Keyboard backlit colour RGB
Keyboard backlit zone 1-zone RGB
Keyboard language English
Numeric keypad Yes
Pointing device Touchpad
Аудио
Audio system Nahimic Audio
Built-in microphone Yes
Number of built-in speakers 2
Number of microphones 2
Speaker power 2
Speakers manufacturer Harman Kardon
Audio Chip Realtek ALC3287
Камера
Front camera Yes
Front camera resolution (numeric) 5
Infrared (IR) camera Yes
Privacy camera Yes
Privacy type Privacy shutter
Батерија
Battery capacity 80
Battery life (max) 13
Battery technology Lithium-Ion (Li-Ion)
Continuous video playback time (max) 13.5
Fast charging Yes
Fast charging time (50%) 30
Напојување
AC adapter frequency 50/60
AC adapter input voltage 100 - 240
AC adapter power 245
USB Power Delivery (USB PD) Yes
USB Type-C charging port Yes
USB Type-C required charging power (max) 100
USB Type-C required charging power (min) 65
Дизајн и Боја
Colour name Eclipse Black
Display back cover material Aluminium
Form factor Clamshell
Housing material Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC)
Product colour Black
Product Type Laptop
Димензии и Тежина
Depth 244.5
Height (front) 18.95
Height (rear) 19.95
Width 344
Weight 1870
Безбедност
Trusted Platform Module (TPM) Yes
Trusted Platform Module (TPM) version 2.0
