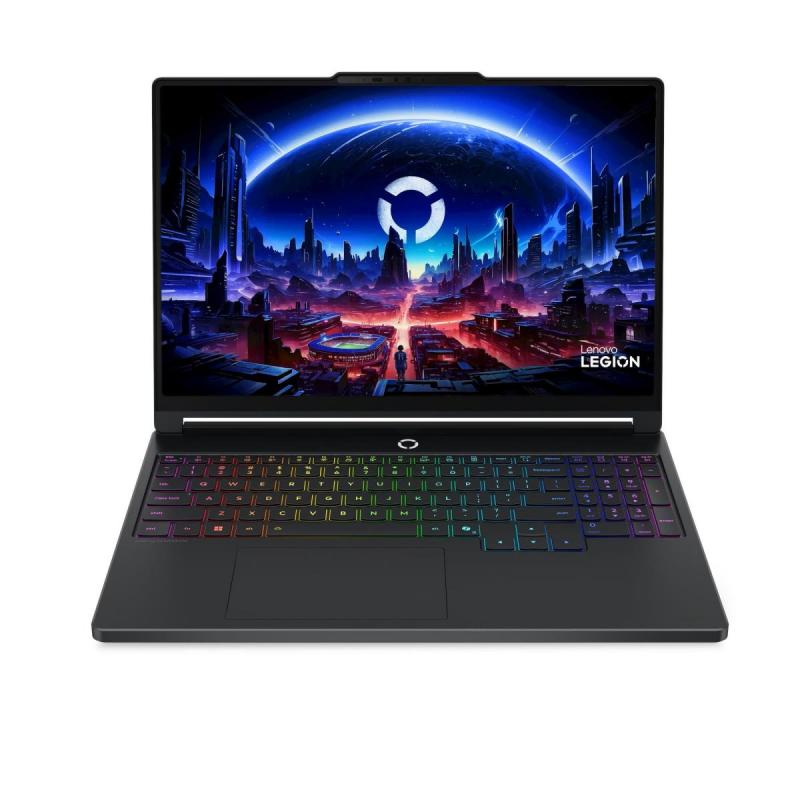

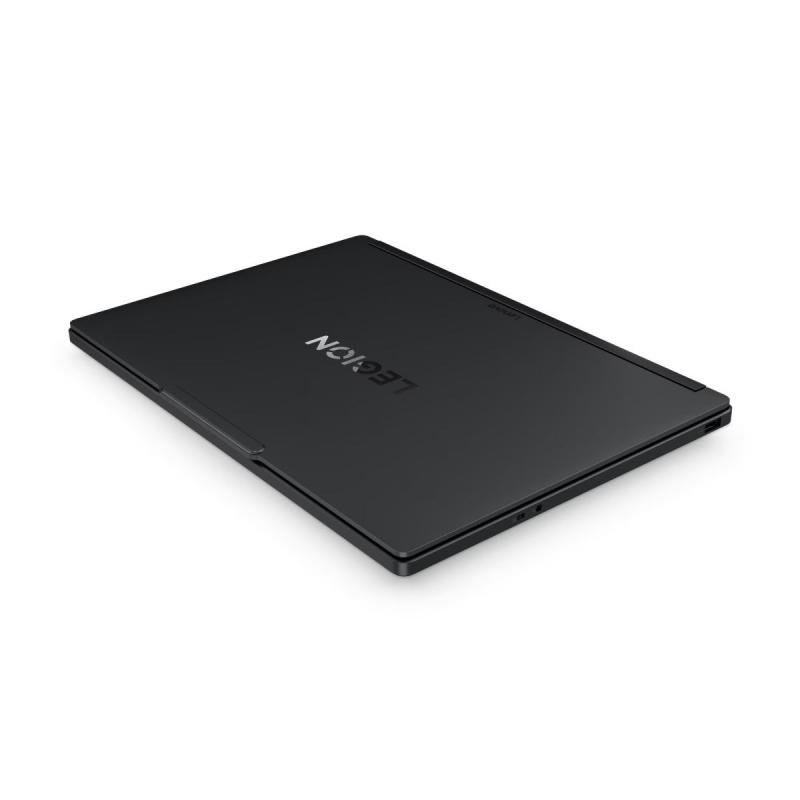

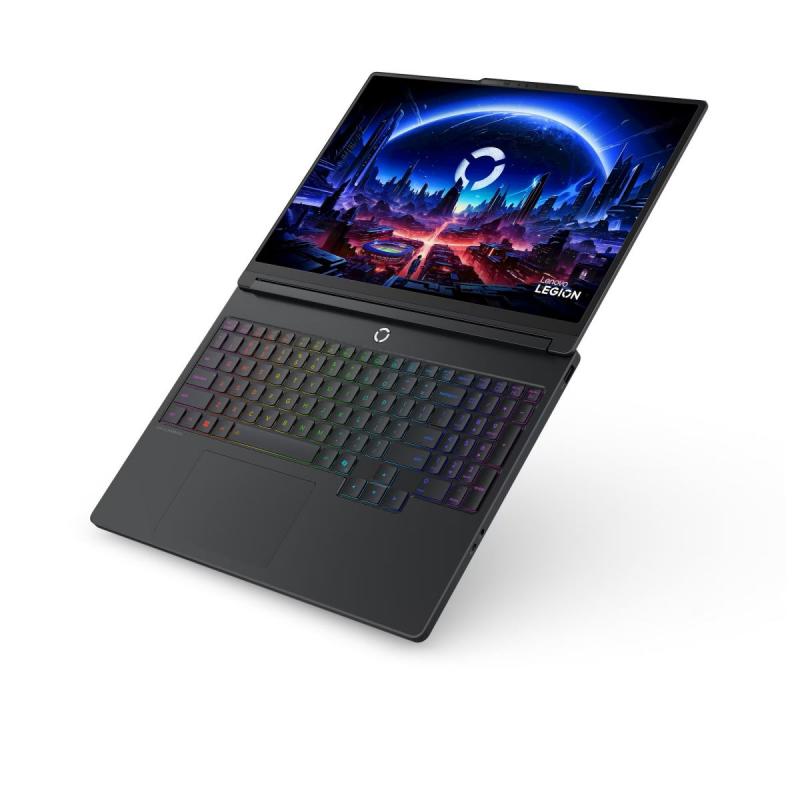

Summary: Lenovo Legion 5 15IPH11. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 356H. Display diagonal: 38.9 cm (15.3"), HD type: WQXGA, Display resolution: 2560 x 1600 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5060. Product colour: Black. Weight: 1.87 kg
Vendor Homepage: https://www.lenovo.com/
Name: NB L5-15IPH11 CU7-356H 15"/32GB/1TB 83RW001WRM LENOVO
Category Code: NB
Model name: Legion 5 15IPH11
Processor manufacturer: Intel
Processor family: Intel Core Ultra 7
Processor generation: Intel Core Ultra (Series 3)
Processor model: 356H
Processor cores: 16
Processor threads: 16
Processor boost frequency: 4.7
Performance cores: 4
Efficient cores: 8
Low Power Efficient-cores: 4
Performance-core Max Turbo Frequency: 4.7
Efficient-core Max Turbo Frequency: 3.7
Low Power Efficient-core Max Turbo Frequency: 3.3
Performance-core base frequency: 1.9
Efficient-core base frequency: 1.5
Low Power Efficient-core Base Frequency: 1500
Processor cache: 18
Maximum turbo power: 80
Processor base power: 25
Display diagonal: 15.3
Display resolution: 2560 x 1600
Panel type: OLED
HD type: WQXGA
LED backlight: Yes
Native aspect ratio: 16:10
Display surface: Gloss
Display brightness: 1000
Colour gamut: 100
RGB colour space: DCI-P3
Maximum refresh rate: 165
Colour name: Eclipse Black
Product type: Laptop
Product colour: Black
Form factor: Clamshell
Display back cover material: Aluminium
Housing material: Acrylonitrile butadiene styrene (ABS),Polycarbonate (PC)
Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
NPU performance up to: 50
GPU performance up to: 40
Internal memory: 32
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600
Memory form factor: SO-DIMM
Memory layout (slots x size): 2 x 16
Memory slots: 2x SO-DIMM
Maximum internal memory: 32
Memory channels: Dual-channel
Total storage capacity: 1000
Storage media: SSD
Total SSDs capacity: 1000
Number of SSDs installed: 1
SSD capacity: 1000
NVMe: Yes
SSD interface: PCI Express 4.0
M.2 SSD size: 2242 (22 x 42 mm)
SSD form factor: M.2
Discrete graphics card: Yes
Discrete graphics card model: NVIDIA GeForce RTX 5060
Discrete graphics memory type: GDDR7
Discrete graphics card memory: 8
On-board GPU manufacturer: Intel
On-board graphics card: Yes
On-board graphics card family: Intel Graphics
On-board graphics card model: Intel Graphics
Audio chip: Realtek ALC3287
Audio system: Nahimic Audio
Number of built-in speakers: 2
Speakers manufacturer: Harman Kardon
Speaker power: 2
Built-in microphone: Yes
Number of microphones: 2
Front camera: Yes
Front camera resolution (numeric): 5
Infrared (IR) camera: Yes
Privacy camera: Yes
Privacy type: Privacy shutter
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Ethernet LAN: Yes
Ethernet LAN data rates: 100/1000
Bluetooth: Yes
Bluetooth version: 5.4
WWAN: Not installed
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 1
Intel Thunderbolt 4: Yes
Combo headphone/mic port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB Type-C DisplayPort Alternate Mode: Yes
USB Sleep-and-Charge: Yes
USB Sleep-and-Charge ports: 1
Motherboard chipset: Intel SoC
Pointing device: Touchpad
Keyboard backlit: Yes
Numeric keypad: Yes
Keyboard backlit colour: RGB
Keyboard backlit zone: 1-zone RGB
Keyboard language: English
Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 80
Battery life (max): 13
Continuous video playback time: 13.5
Fast charging: Yes
Fast charging time (50%): 30
AC adapter power: 245
AC adapter frequency: 50/60
AC adapter input voltage: 100 - 240
USB Type-C charging port: Yes
USB Type-C required charging power (max): 100
USB Type-C required charging power (min): 65
USB Power Delivery (USB PD): Yes
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Operating temperature (T-T): 5 - 35
Storage temperature (T-T): 5 - 43
Operating relative humidity (H-H): 8 - 95
Storage relative humidity (H-H): 5 - 95
Maximum shipping altitude: 3048
Compliance certificates: RoHS
Certification: ErP Lot 6/26 TÜV Rheinland Flicker Free TÜV Rheinland High Gaming Performance TÜV Rheinland Low Blue Light (Hardware Solution)
Width: 344
Depth: 244.5
Height (front): 18.95
Height (rear): 19.95
Weight: 1870
AC adapter included: Yes
Units per Shipping Box: 1
Unit Calculated Volume: 0.01306
Unit Calculated Weight: 3
