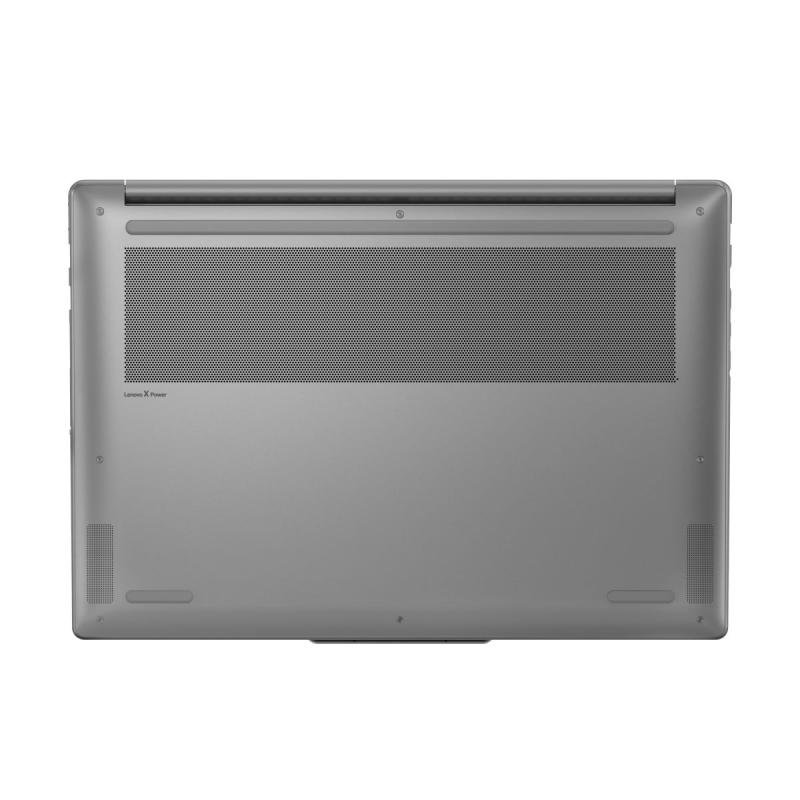

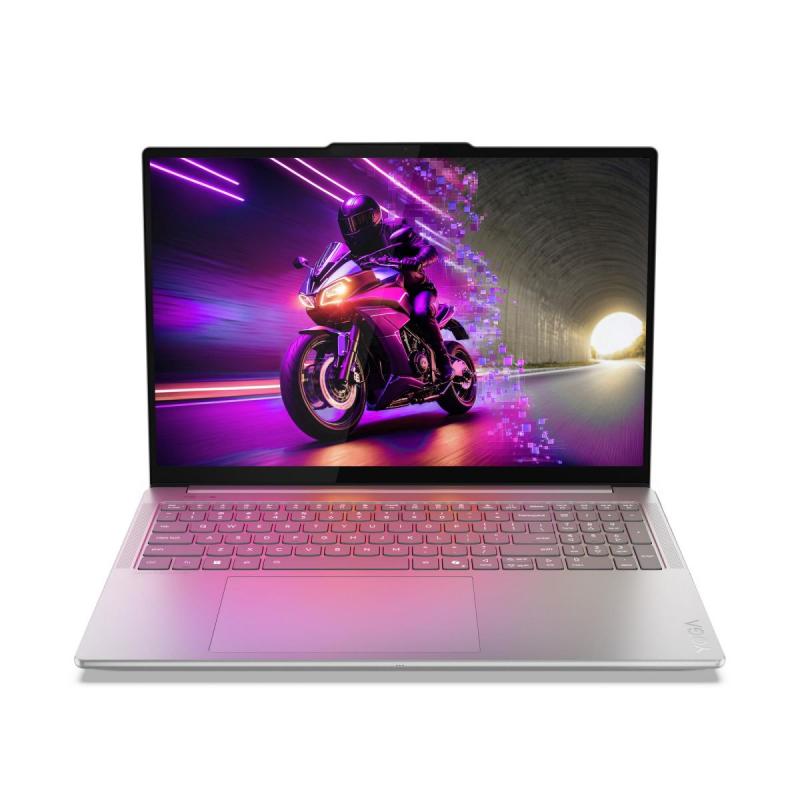

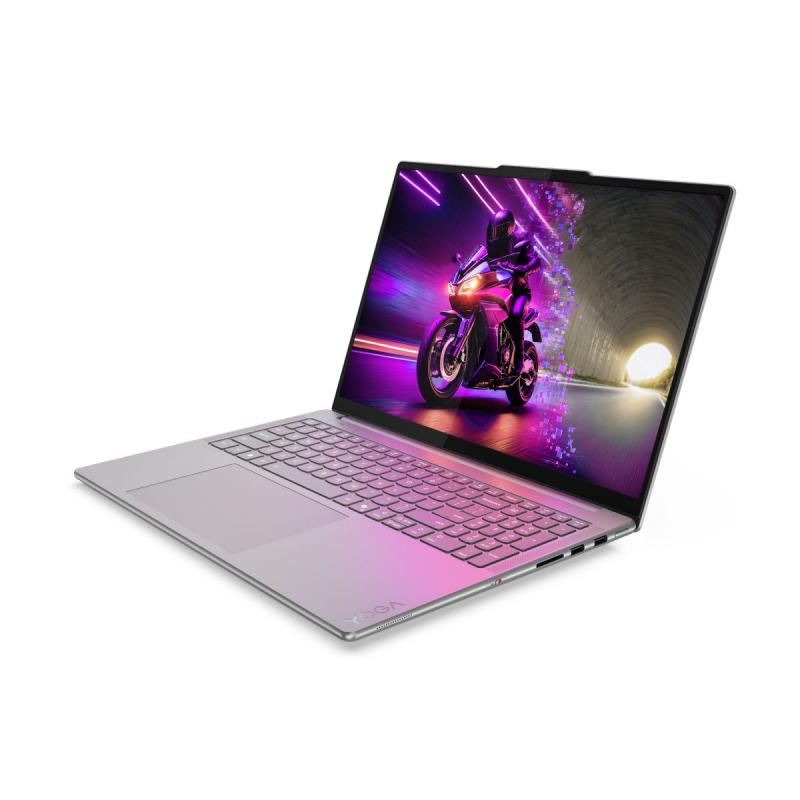

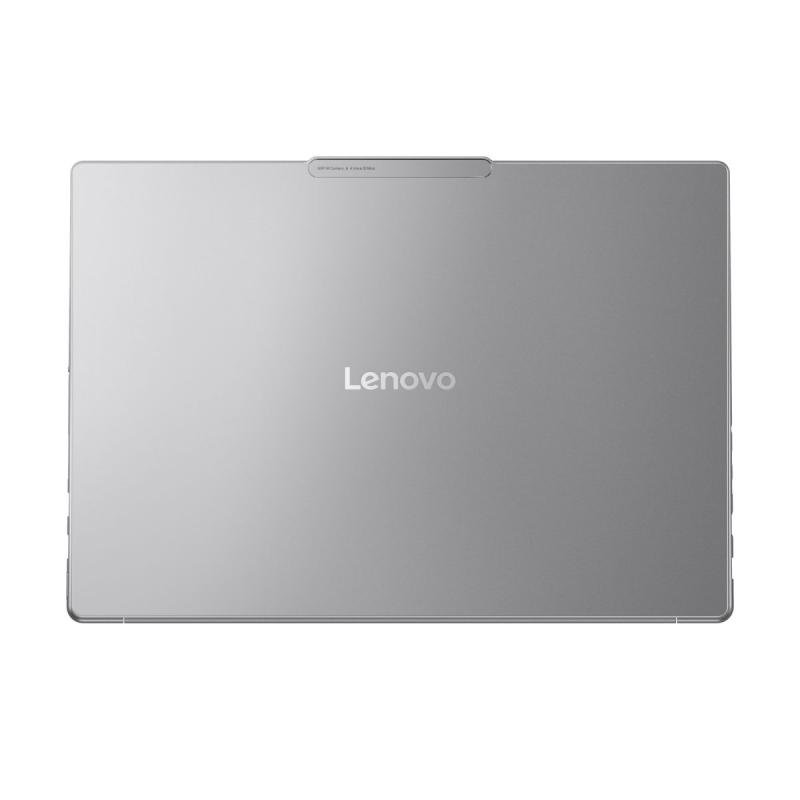

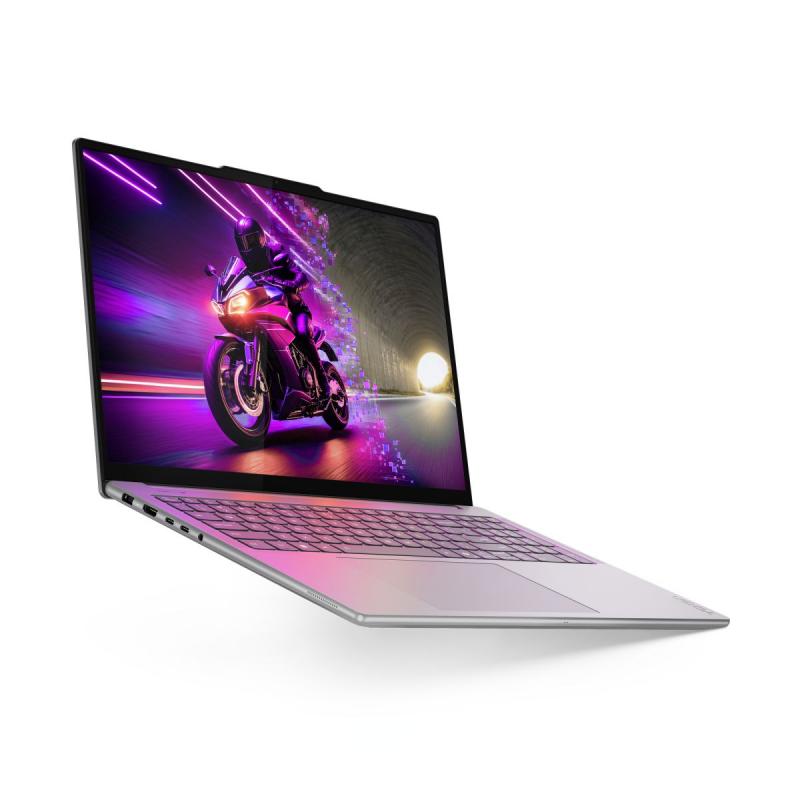

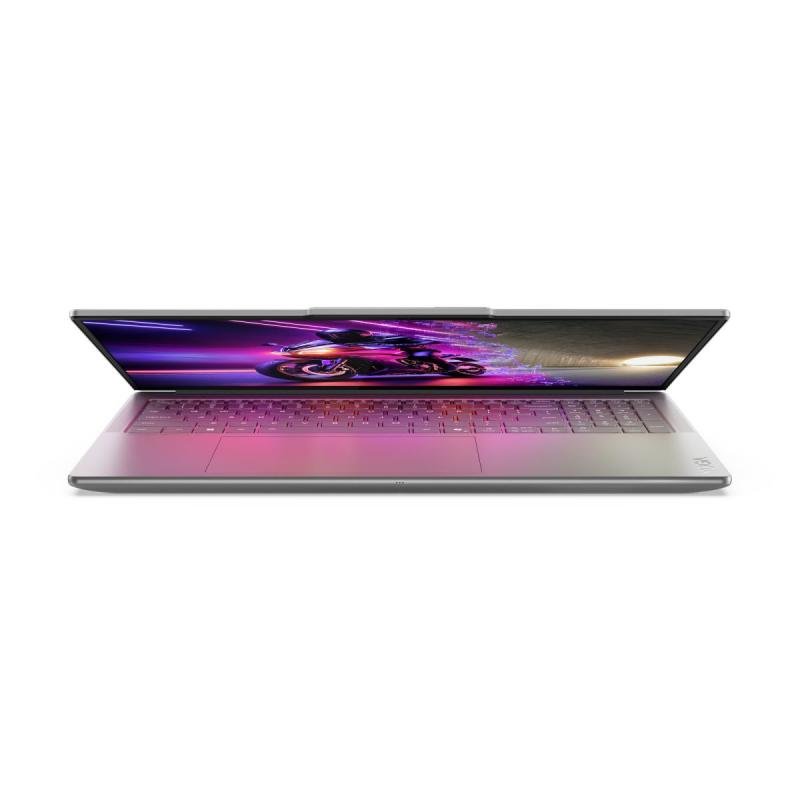

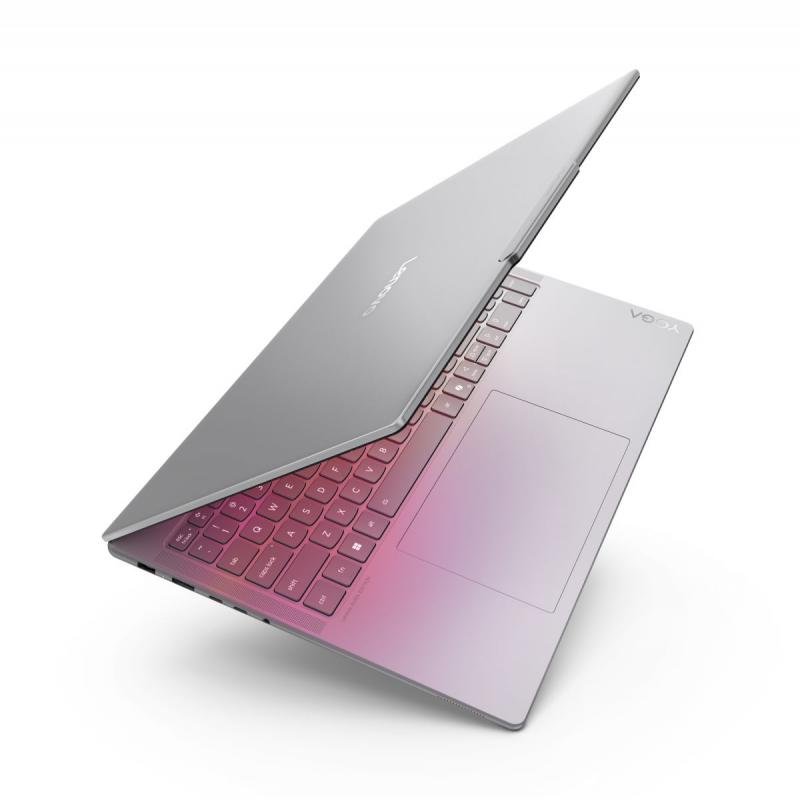

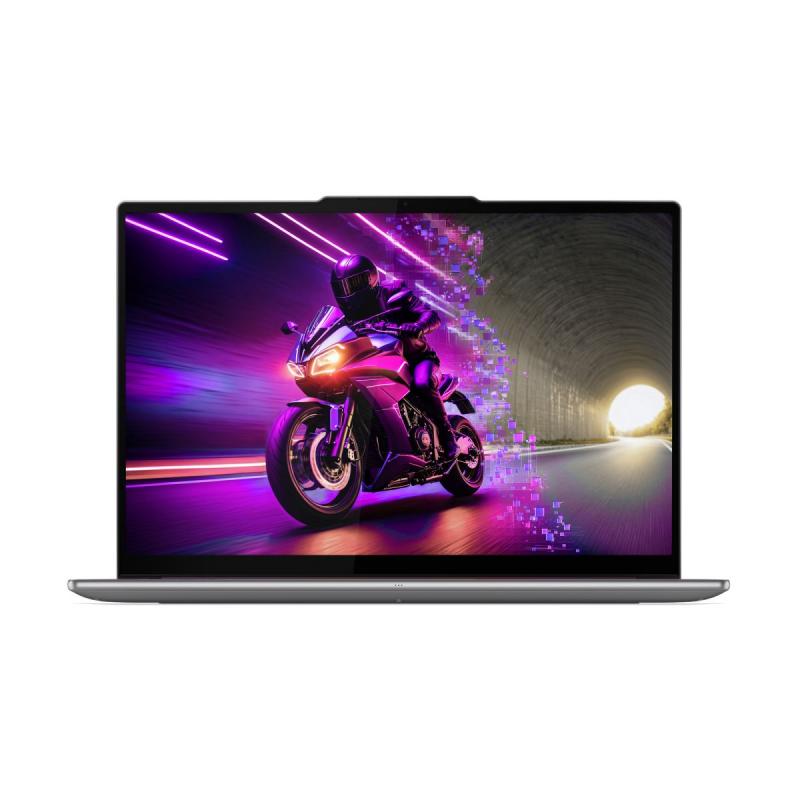

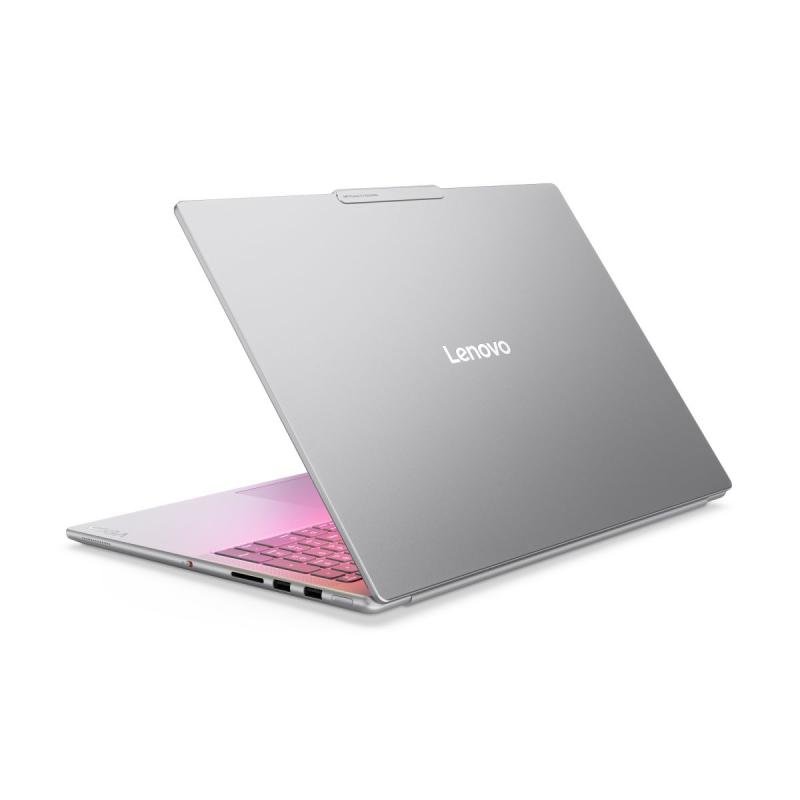

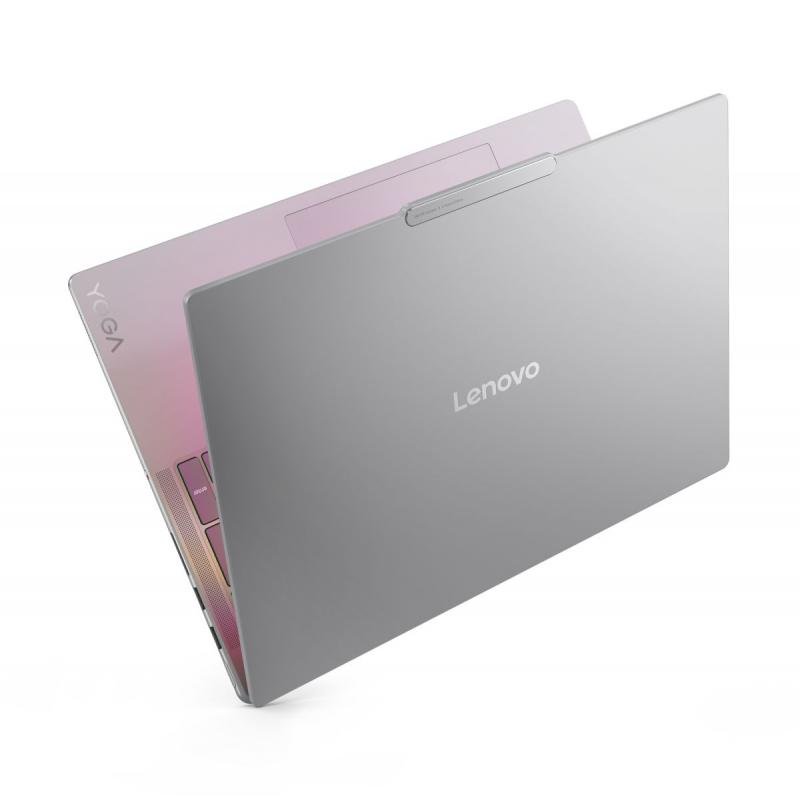

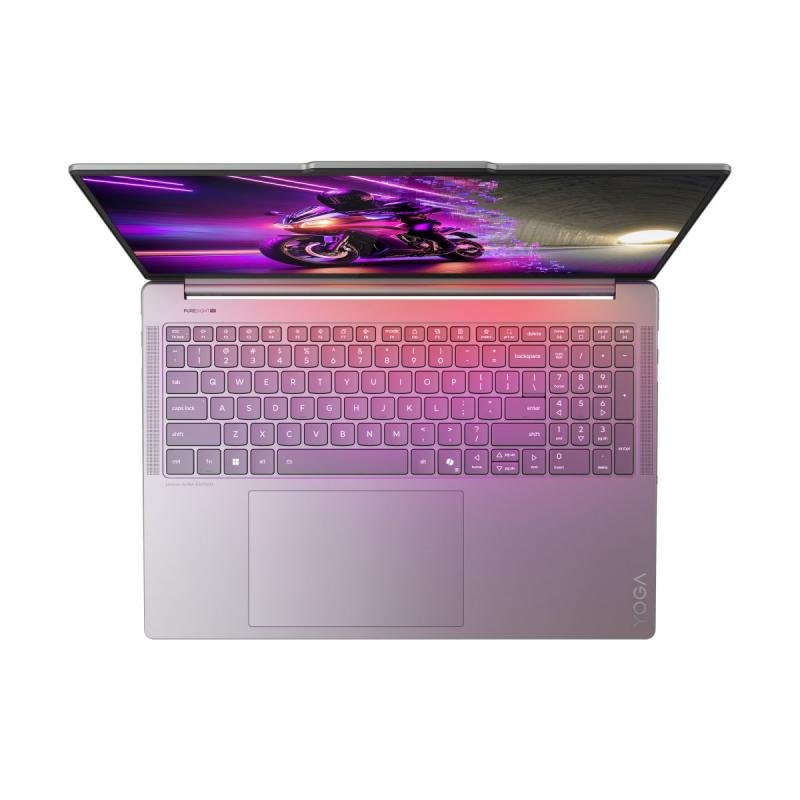

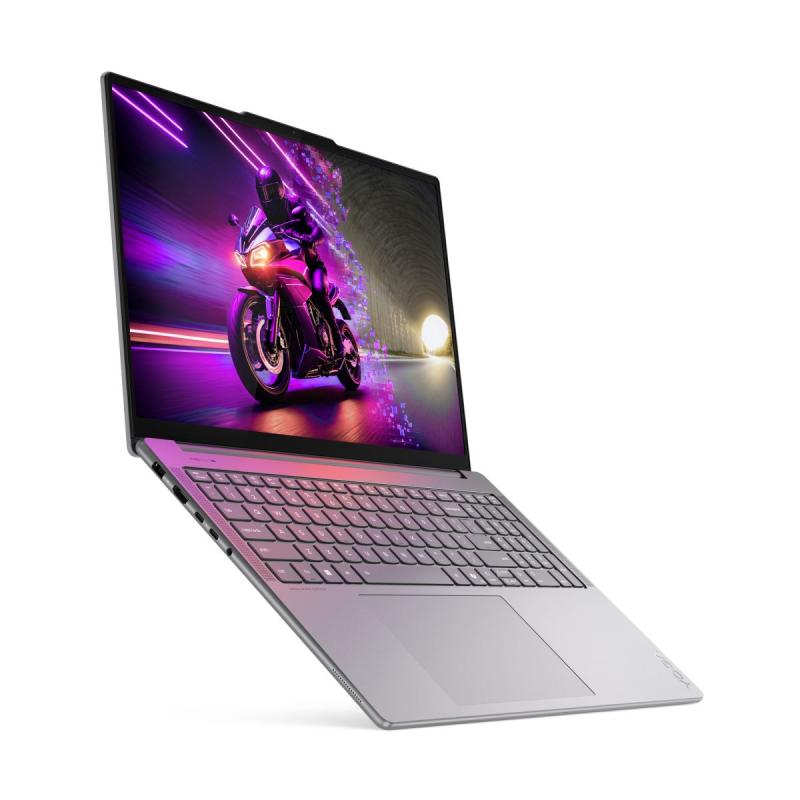

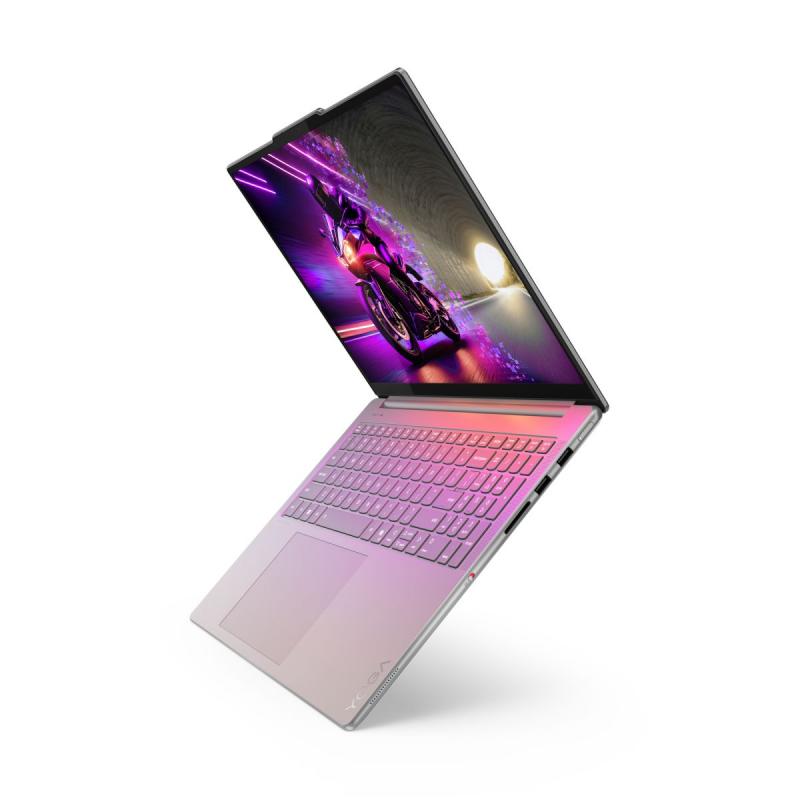

Yoga Pro 9 16IAH10

Technical Specifications

• Summary: Lenovo Yoga Pro 9 16IAH10. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 285H. Display diagonal: 40.6 cm (16"), HD type: 3.2K, Display resolution: 3200 x 2000 pixels. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA GeForce RTX 5070. Operating system installed: Windows 11 Pro. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/
• Name: NB YGP9-16IAH10 CU9-285H 16"/64GB/2TB 11P 83L0005YRM LENOVO
• Category Code: NB
• NB Family name: Yoga
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 285H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.4
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.4
• Efficient-core Max Turbo Frequency: 4.5
• Low Power Efficient-core Max Turbo Frequency: 2.5
• Performance-core base frequency: 2.9
• Efficient-core base frequency: 2.7
• Low Power Efficient-core Base Frequency: 1000
• Processor cache: 24
• Maximum turbo power: 115
• Processor base power: 45
• Display diagonal: 16
• Display resolution: 3200 x 2000
• Panel type: OLED
• HD type: 3.2K
• LED backlight: Yes
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 1600
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 120
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: Dolby Vision
• Colour name: Luna Grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Aluminium
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 99
• NPU performance up to: 13
• GPU performance up to: 77
• Internal memory: 64
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 8400
• Memory form factor: On-board
• Maximum internal memory: 64
• Total storage capacity: 2000
• Storage media: SSD
• Total SSDs capacity: 2000
• Number of SSDs installed: 2
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5070
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc 140T
• Audio chip: Realtek ALC3306
• Number of built-in speakers: 6
• Built-in microphone: Yes
• Number of microphones: 4
• Front camera resolution (numeric): 5
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Sleep-and-Charge: Yes
• Motherboard chipset: Intel SoC
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Operating system language: English/ROM
• Trial software: Office
• Operating system installed: Windows 11 Pro
• Battery capacity: 84
• AC adapter power: 170
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Certification: ENERGY STAR,EPEAT Gold,RoHS
• Width: 362.72
• Depth: 253.69
• Height: 17.9
• Weight: 1920
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0154
• Unit Calculated Weight: 4
