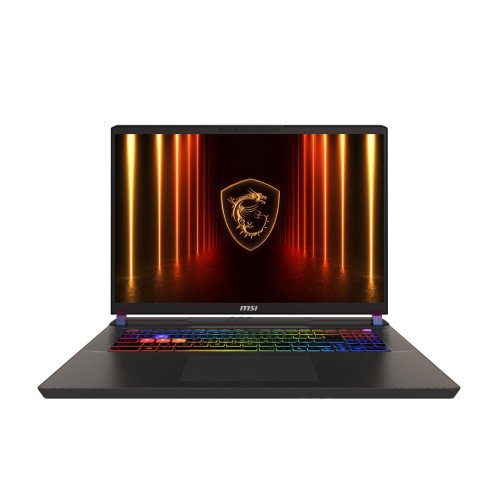

NB VECTOR 17HXAI CU9-275HX 17/64G/2TB W11 9S7-17S372-207 MSI

Technical Specifications

• Vendor Homepage: www.msi.com/Laptop/Vector-17-HX-AI-A2XWX/Overview
• Name: NB VECTOR 17HXAI CU9-275HX 17"/64G/2TB W11 9S7-17S372-207 MSI
• Category Code: NB
• Model name: Vector 17 HX AI A2XWJG
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 275HX
• Processor cores: 24
• Processor threads: 24
• Processor boost frequency: 5.4
• Performance cores: 8
• Efficient cores: 16
• Performance-core Max Turbo Frequency: 5.4
• Efficient-core Max Turbo Frequency: 4.6
• Performance-core base frequency: 2.7
• Efficient-core base frequency: 2.1
• Processor cache: 36
• Maximum turbo power: 160
• Processor base power: 55
• Display diagonal: 17
• Display resolution: 2560 x 1600
• Panel type: IPS-Level
• HD type: Quad HD+
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 400
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 240
• Colour name: Cosmos Gray
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Metal,Plastic
• Original brand name: MSI
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 36
• NPU performance up to: 13
• GPU performance up to: 8
• Internal memory: 64
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 6400
• Memory layout (slots x size): 2 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 96
• Total storage capacity: 2000
• Storage media: SSD
• Total SSDs capacity: 2000
• Number of SSDs installed: 1
• SSD capacity: 2000
• NVMe: Yes
• SSD interface: PCI Express
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5090
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 24
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Audio system: Nahimic 3
• Number of built-in speakers: 2
• Speaker power: 2
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Video capturing speed: 30
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• WLAN controller model: Killer Wi-Fi 7 BE1750
• Ethernet LAN: Yes
• Ethernet LAN data rates: 2500
• Bluetooth: Yes
• Bluetooth version: 5.4
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 5 ports quantity: 2
• Intel Thunderbolt 5: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• Motherboard chipset: Intel HM870
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 24-zone RGB
• Keyboard number of keys: 99
• Keyboard language: English
• Copilot key: Yes
• Operating system installed: Windows 11 Home
• Number of battery cells: 4
• Battery capacity: 5845
• Battery capacity: 90
• AC adapter power: 330
• AC adapter input voltage: 90 - 264
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Width: 380.34
• Depth: 297.97
• Height (front): 22.85
• Height (rear): 28.75
• Weight: 3000
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.020925
• Unit Calculated Weight: 5.3
