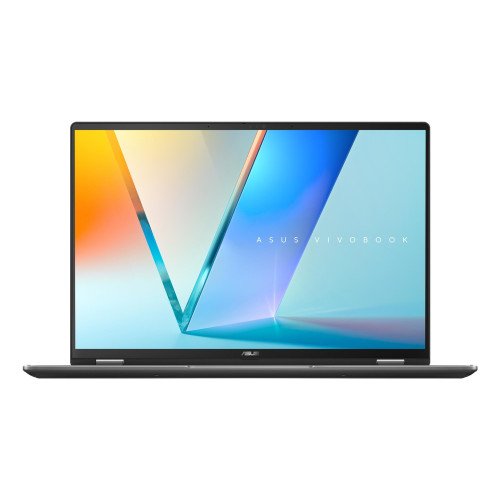

Vivobook 16 Flip TP3607SA-RJ050X Copilot+ PC

Technical Specifications

• Summary: ASUS Vivobook 16 Flip TP3607SA-RJ050X Copilot+ PC. Product type: Hybrid (2-in-1), Form factor: Convertible (Folder). Processor family: Intel Core Ultra 5, Processor model: 226V. Display diagonal: 40.6 cm (16"), HD type: 3K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 16 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 130V. Operating system installed: Windows 11 Pro. Product colour: Black, Grey
• Vendor Homepage: https://www.asus.com/laptops/for-home/vivobook/asus-vivobook-16-flip-tp3607/
• Name: NB TP3607SA CU5-226V 16"T 16GB/1TB W11P TP3607SA-RJ050X ASUS
• Category Code: NB
• NB Family name: VivoBook Flip
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 5
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 226V
• Processor cores: 8
• Processor threads: 8
• Processor boost frequency: 4.5
• Performance cores: 4
• Low Power Efficient-cores: 4
• Performance-core Max Turbo Frequency: 4.5
• Low Power Efficient-core Max Turbo Frequency: 3.5
• Performance-core base frequency: 2.1
• Low Power Efficient-core Base Frequency: 2100
• Processor cache: 8
• Processor cache type: Smart Cache
• Maximum turbo power: 37
• Processor base power: 17
• Display diagonal: 16
• Display resolution: 2880 x 1800
• Panel type: OLED
• HD type: 3K
• Touchscreen: Yes
• Display number of colours: 1.07 billion colours
• Native aspect ratio: 16:10
• Display surface: Gloss
• Display brightness: 400
• Maximum display brightness (HDR): 500
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 120
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: HDR True Black 500
• Colour name: Matte Gray
• Product type: Hybrid (2-in-1)
• Product colour: Black,Grey
• Form factor: Convertible (Folder)
• Housing material: Aluminium,Plastic
• Market positioning: Home
• Introduction year: 2025
• Copilot+ PC: Yes
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 97
• NPU performance up to: 40
• GPU performance up to: 53
• Internal memory: 16
• Internal memory type: LPDDR5x-SDRAM
• Memory form factor: On-board
• Maximum internal memory: 16
• Memory channels: Single-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: MicroSD (TransFlash)
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc Graphics 130V
• Audio system: Smart Amp
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 1
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• Repairability index: 8.8
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Copilot key: Yes
• Operating system architecture: 64-bit
• Microsoft Copilot: Yes
• Trial software: 1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days, One-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2025.
• Operating system installed: Windows 11 Pro
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 75
• AC adapter power: 65
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 3.25
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Password protection: Yes
• Password protection type: BIOS/User
• Compliance certificates: REACH
• Sustainability certificates: ENERGY STAR
• Width: 355
• Depth: 244.3
• Height (front): 16.9
• Height (rear): 17.4
• Weight: 1800
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.009615
• Unit Calculated Weight: 2.8
