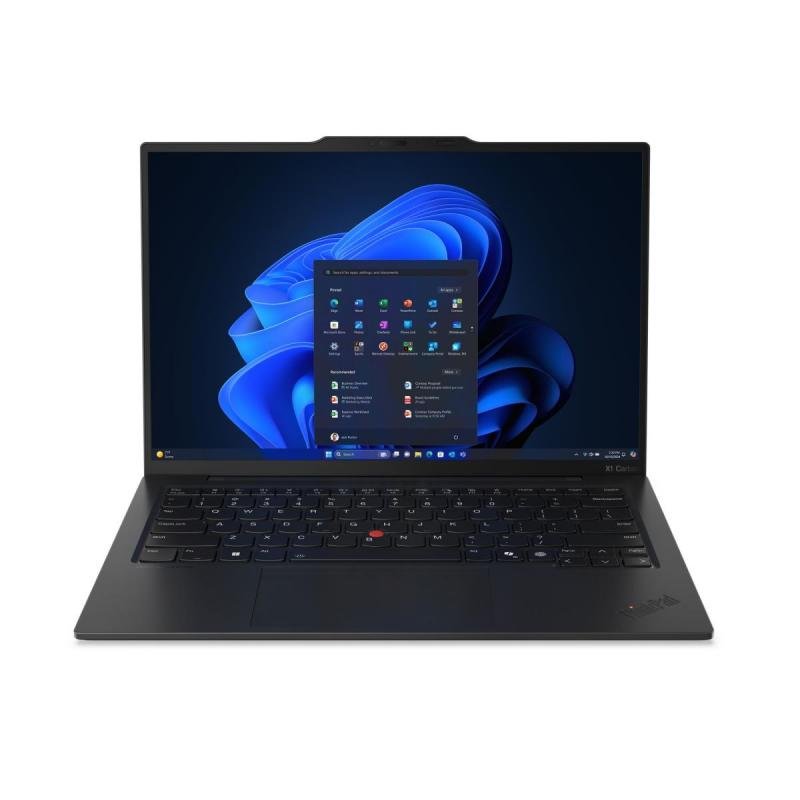

ThinkPad X1 Carbon Gen 13 Aura Edition

Technical Specifications

• Summary: Lenovo ThinkPad X1 Carbon Gen 13 Aura Edition. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 265U. Display diagonal: 35.6 cm (14"), HD type: 2.8K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. Mobile network generation: 5G. Operating system installed: Windows 11 Pro. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/
• Name: NB TP X1 CARBON CU5-265U 14"/64GB/1TB 11P 21NX008SRI LENOVO
• Category Code: NB
• NB Family name: ThinkPad
• Model name: X1 Carbon Gen 13 Aura Edition
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 265U
• Processor cores: 12
• Processor threads: 14
• Processor boost frequency: 5.3
• Performance cores: 2
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.3
• Efficient-core Max Turbo Frequency: 4.2
• Low Power Efficient-core Max Turbo Frequency: 2.4
• Performance-core base frequency: 2.1
• Efficient-core base frequency: 1.7
• Low Power Efficient-core Base Frequency: 700
• Processor cache: 12
• Maximum turbo power: 57
• Processor base power: 15
• Display diagonal: 14
• Display resolution: 2880 x 1800
• Panel type: OLED
• HD type: 2.8K
• Touchscreen: Yes
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 500
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 120
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: Dolby Vision
• Colour name: Black, Paint
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Housing material: Aluminium
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• Internal memory: 64
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 8400
• Memory form factor: On-board
• Maximum internal memory: 64
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 5.0
• SSD form factor: M.2
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Audio chip: Realtek ALC3306
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera resolution (numeric): 8
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Mobile network generation: 5G
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Mobile network connection: Yes
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• WLAN controller manufacturer: Intel
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Installed
• WWAN controller: Quectel RM520N-GL, 5G Sub-6 GHz, with Embedded eSIM
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Sleep-and-Charge: Yes
• Motherboard chipset: Intel SoC
• Pointing device: ThinkPad UltraNav
• Keyboard backlit: Yes
• Keyboard language: English
• Operating system language: English/ROM
• Operating system installed: Windows 11 Pro
• Bundled software: Intel Connectivity Performance Suite
• Battery capacity: 57
• AC adapter power: 65
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Certification: ENERGY STAR,TCO,EPEAT Gold,RoHS
• Width: 312.8
• Depth: 214.75
• Height (front): 8.08
• Height (rear): 14.37
• Weight: 1006
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01141
• Unit Calculated Weight: 3
