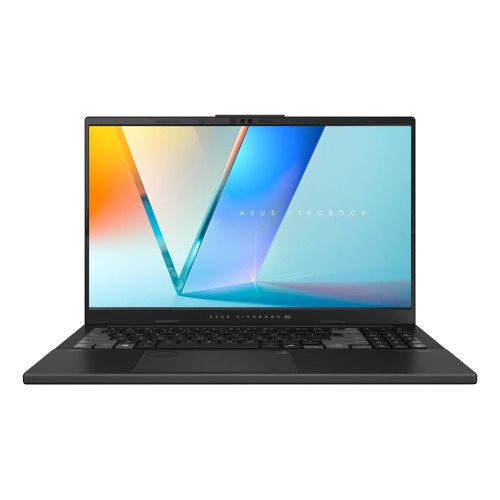

Vivobook Pro 15 OLED N6506CU-MA020X

Technical Specifications

• Summary: ASUS Vivobook Pro 15 OLED N6506CU-MA020X. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 285H. Display diagonal: 39.6 cm (15.6"), HD type: 3K, Display resolution: 2880 x 1620 pixels. Internal memory: 24 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T, Discrete graphics card model: NVIDIA GeForce RTX 4050. Operating system installed: Windows 11 Pro. Product colour: Grey
• Vendor Homepage: https://www.asus.com/laptops/for-home/vivobook/asus-vivobook-pro-15-oled-n6506/
• Name: NB N6506CU CU9-285H 15" 24GB/1TB W11P N6506CU-MA020X ASUS
• Category Code: NB
• NB Family name: VivoBook Pro Series
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 285H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.4
• Performance cores: 6
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 5.4
• Efficient-core Max Turbo Frequency: 4.5
• Low Power Efficient-core Max Turbo Frequency: 2.5
• Performance-core base frequency: 2.9
• Efficient-core base frequency: 2.7
• Low Power Efficient-core Base Frequency: 1000
• Processor cache: 24
• Maximum turbo power: 115
• Processor base power: 45
• Display diagonal: 15.6
• Display resolution: 2880 x 1620
• Panel type: OLED
• HD type: 3K
• Display number of colours: 1.07 billion colours
• Native aspect ratio: 16:9
• Display surface: Gloss
• Display brightness: 400
• Maximum display brightness (HDR): 500
• Colour gamut: 100
• Low Blue Light technology: Yes
• RGB colour space: DCI-P3
• Display response rise/fall: 0.2
• Maximum refresh rate: 120
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: HDR True Black 600
• Colour name: Earl Gray
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Aluminium,Plastic
• Market positioning: Home
• Introduction year: 2025
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 99
• NPU performance up to: 13
• GPU performance up to: 77
• Internal memory: 24
• Internal memory type: DDR5-SDRAM
• Memory form factor: On-board + SO-DIMM
• Memory layout (slots x size): 1 x 16
• Memory slots: 1x SO-DIMM
• Maximum internal memory: 24
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 4050
• Discrete graphics memory type: GDDR6
• Discrete graphics card memory: 6
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc 140T
• Audio system: Smart Amp
• Speakers manufacturer: Harman Kardon
• Built-in microphone: Yes
• Front camera: Yes
• Front camera resolution (numeric): 5
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 1
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• Power adapter barrel connector: 6.0
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad + DialPad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Copilot key: Yes
• Operating system architecture: 64-bit
• Microsoft Copilot: Yes
• Operating system installed: Windows 11 Pro
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 75
• AC adapter power: 200
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 10
• AC adapter output voltage: 20
• DC-in jack: Yes
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Password protection: Yes
• Password protection type: BIOS/User
• Compliance certificates: REACH
• Sustainability certificates: ENERGY STAR
• Width: 355.7
• Depth: 235.3
• Height: 19.9
• Weight: 1800
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.008004
• Unit Calculated Weight: 5
