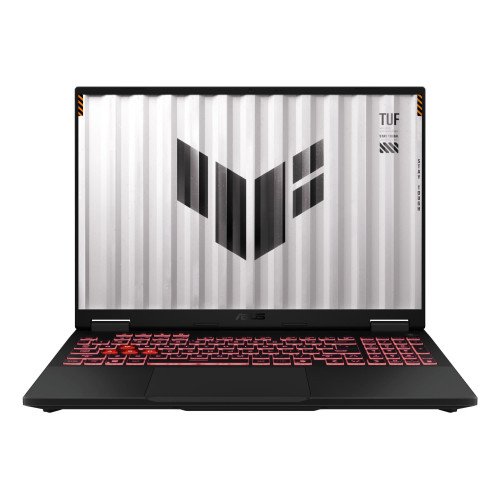

NB FA608PM R9-8940HX 16\\\"/16GB/1TB FA608PM-RV065 ASUS

Technical Specifications

• Description:

  Serious Gaming Specs
  As a member of the TUF Gaming family, the A16 boasts some seriously impressive specs, giving you access to the very best of gaming on Windows 11. Featuring AMD Ryzen 9 8940HX processor and an NVIDIA GeForce RTX 5060 Laptop GPU, the A16 can easily play the latest games or keep your workflow on schedule. Paired with 16GB of DDR5 5600MHz memory per slot and dual expandable PCIe Gen 4 storage slots, this little machine is ready for anything, right out of the box.

  • No OS
  • AMD Ryzen 9 8940HX (2.4GHz)
  • 40.6 cm (16") WUXGA 1920 x 1200 IPS-Level, NVIDIA GeForce RTX 5060 (8GB GDDR7)
  • 16GB (5200MHz) DDR5-SDRAM & 1000GB SSD

• Summary: ASUS TUF Gaming A16 FA608PM-RV065. Product type: Laptop, Form factor: Clamshell. Processor family: AMD Ryzen 9, Processor model: 8940HX, Processor frequency: 2.4 GHz. Display diagonal: 40.6 cm (16"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels. Internal memory: 16 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: AMD Radeon 610M, Discrete graphics card model: NVIDIA GeForce RTX 5060. Product colour: Black, Grey
• Vendor Homepage: https://www.asus.com/laptops/for-gaming/tuf-gaming/asus-tuf-gaming-a16-2025/
• Name: NB FA608PM R9-8940HX 16"/16GB/1TB FA608PM-RV065 ASUS
• Category Code: NB
• NB Family name: TUF
• Model name: Gaming A16 (2025)
• Processor manufacturer: AMD
• Processor family: AMD Ryzen 9
• Processor generation: AMD Ryzen 8000 Series
• Processor model: 8940HX
• Processor cores: 16
• Processor threads: 32
• Processor boost frequency: 5.3
• Processor frequency: 2.4
• Processor cache type: L2 & L3
• L3 cache: 64
• L2 cache: 16
• Display diagonal: 16
• Display resolution: 1920 x 1200
• Panel type: IPS-Level
• HD type: WUXGA
• Touchscreen: No
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 165
• Colour name: Jaeger Gray
• Product type: Laptop
• Product colour: Black,Grey
• Form factor: Clamshell
• Market positioning: Gaming
• Introduction year: 2025
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5200
• Memory form factor: SO-DIMM
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Optical drive type: No
• Card reader integrated: No
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5060
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 8
• On-board GPU manufacturer: AMD
• On-board graphics card: Yes
• On-board graphics card family: AMD Radeon
• On-board graphics card model: AMD Radeon 610M
• NVIDIA G-SYNC: Yes
• Audio system: Dolby Atmos
• Number of built-in speakers: 2
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Mobile network connection: No
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• Ethernet LAN: Yes
• Ethernet LAN data rates: 10/100/1000
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 1-zone RGB
• Copilot key: Yes
• Operating system installed: No
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 90
• Fast charging: Yes
• Fast charging time (50%): 30
• AC adapter power: 280
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 14
• AC adapter output voltage: 20
• DC-in jack: Yes
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Face recognition: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Password protection: Yes
• Password protection type: BIOS/User
• Width: 354
• Depth: 269
• Height (front): 17.9
• Height (rear): 27.3
• Weight: 2200
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01419
• Unit Calculated Weight: 5
