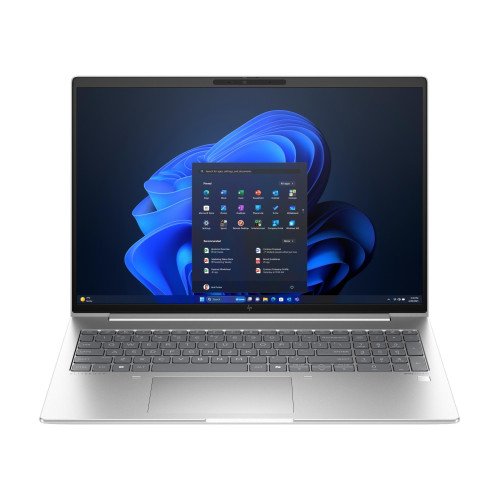

EliteBook 660 G11

Technical Specifications

• Vendor Homepage: www8.hp.com
• Name: NB ELITE-660 G11 CU5-125U 16"/16/512GB W11P 9Y7L8ET HP
• Category Code: NB
• NB Family name: EliteBook
• Model name: 660 G11
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 5
• Processor generation: Intel Core Ultra (Series 1)
• Processor model: 125U
• Processor cores: 12
• Processor threads: 14
• Processor boost frequency: 4.3
• Performance cores: 2
• Efficient cores: 8
• Low Power Efficient-cores: 2
• Performance-core Max Turbo Frequency: 4.3
• Efficient-core Max Turbo Frequency: 3.6
• Low Power Efficient-core Max Turbo Frequency: 2.1
• Performance-core base frequency: 1.3
• Efficient-core base frequency: 0.8
• Low Power Efficient-core Base Frequency: 700
• Processor cache: 12
• Processor cache type: L3
• Maximum turbo power: 57
• Processor base power: 15
• Display diagonal: 16
• Display resolution: 1920 x 1200
• Panel type: IPS
• HD type: WUXGA
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display bezel technology: Narrow Border
• Display brightness: 300
• Colour gamut: 45
• Display diagonal (metric): 40.6
• RGB colour space: NTSC
• Colour name: Pike silver aluminum
• Product type: Laptop
• Product colour: Silver
• Form factor: Clamshell
• Market positioning: Premium
• Introduction year: 2024
• Country of origin: China/Thailand
• Original brand name: HP
• Neural processor unit (NPU): Intel AI Boost
• Maximum frequency NPU: 1.4
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/Windows ML
• Internal memory: 16
• Internal memory type: DDR5-SDRAM
• Memory clock speed: 5600
• Memory form factor: SO-DIMM
• Memory layout (slots x size): 1 x 16
• Memory slots: 2x SO-DIMM
• Maximum internal memory: 64
• Non-ECC: Yes
• Total storage capacity: 512
• Storage media: SSD
• Total SSDs capacity: 512
• Number of SSDs installed: 1
• SSD capacity: 512
• NVMe: Yes
• SSD interface: PCI Express
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Built-in speaker(s): Yes
• Number of built-in speakers: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Wi-Fi: Yes
• Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
• Wi-Fi standards: Wi-Fi 6E (802.11ax)
• Antenna type: 2x2
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 6E AX211
• Ethernet LAN: Yes
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• Keyboard special features: Spill-resistant
• Pointing device: Clickpad
• Keyboard backlit: Yes
• Numeric keypad: Yes
• Island-style keyboard: Yes
• Spill-resistant keyboard: Yes
• Full-size keyboard: Yes
• Keyboard language: English
• Input device model: HP Premium Keyboard
• Operating system installed: Windows 11 Pro
• Intel Turbo Boost Technology: Yes
• HP speaker type: HP Dual Speakers
• HP Artificial Intelligence: AI PC
• HP segment: Business
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 3
• Battery capacity: 56
• AC adapter power: 65
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Fingerprint reader: Yes
• Password protection: Yes
• Password protection type: BIOS/Power on
• Compliance certificates: BSMI/CCC/CE/Federal Communications Commission (FCC)/GS mark/RoHS
• Low halogen: Yes
• Sustainability certificates: ENERGY STAR/EPEAT/TCO
• Sustainability compliance: Yes
• Width: 359.4
• Depth: 251
• Height (front): 10.9
• Height (rear): 17
• Weight: 1740
• Package width: 69
• Package depth: 483
• Package height: 305
• Carbon emissions, logistics (kg of CO2e): 5
• Carbon emissions, manufacturing (kg of CO2e): 125
• Total carbon emissions, w/o use phase (kg of CO2e): 9
• Total carbon footprint (kg of CO2e): 140
• Keyboard included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.011284
• Unit Calculated Weight: 3
