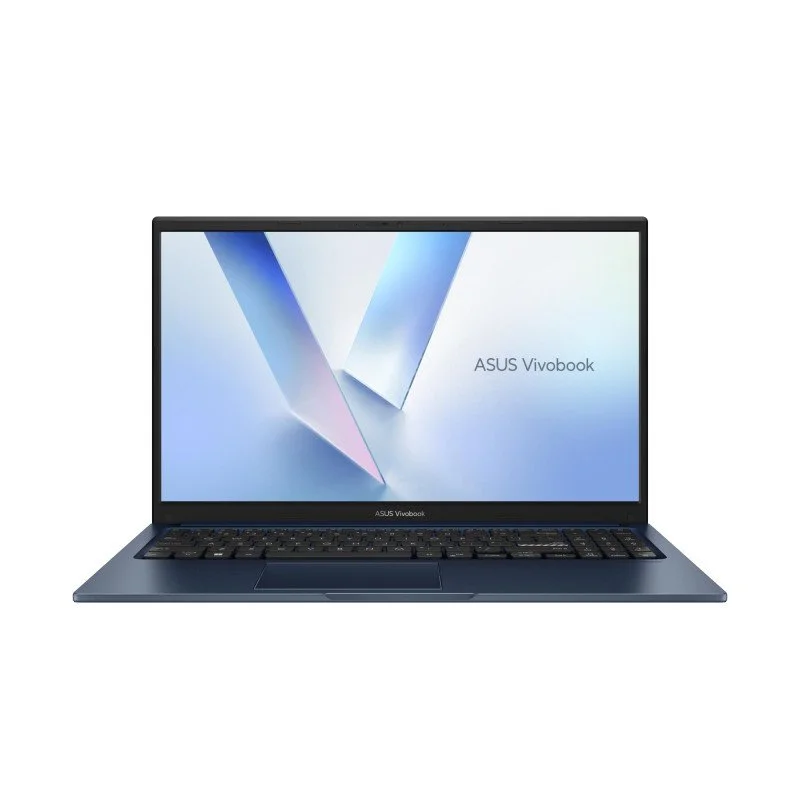

VivoBook Series X1504MA-BQ771

Technical Specifications

• Vendor Homepage: https://www.asus.com/laptops/for-home/vivobook/asus-vivobook-15-x1504/
• Name: NB X1504MA C5-315 15" 8GB/256GB X1504MA-BQ771 ASUS
• Category Code: NB
• NB Family name: VivoBook Series
• Model name: X1504MA-BQ771
• Processor manufacturer: Intel
• Processor family: Intel Core 5
• Processor generation: Intel Core (Series 3)
• Processor model: 315
• Processor cores: 6
• Processor threads: 6
• Processor boost frequency: 4.4
• Performance cores: 2
• Low Power Efficient-cores: 4
• Performance-core Max Turbo Frequency: 4.4
• Low Power Efficient-core Max Turbo Frequency: 3.3
• Performance-core base frequency: 1.5
• Low Power Efficient-core Base Frequency: 1400
• Processor cache: 6
• Processor cache type: Smart Cache
• Processor socket: FCBGA1516
• Maximum turbo power: 35
• Processor base power: 15
• Display diagonal: 15.6
• Display resolution: 1920 x 1080
• Panel type: IPS-Level
• HD type: Full HD
• Native aspect ratio: 16:9
• Anti-glare screen: Yes
• Display brightness: 250
• Colour gamut: 45
• RGB colour space: NTSC
• Maximum refresh rate: 60
• Colour name: Quiet Blue
• Product type: Laptop
• Product colour: Blue
• Form factor: Clamshell
• Display back cover material: Plastic
• Housing material: Plastic
• Market positioning: Home
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: ONNX RT/OpenVINO/WebNN/Windows ML
• NPU performance up to: 15
• GPU performance up to: 18
• Internal memory: 8
• Internal memory type: DDR5-SDRAM
• Memory form factor: SO-DIMM
• Memory slots: 1x SO-DIMM
• Memory channels: Single-channel
• Total storage capacity: 256
• Storage media: SSD
• Total SSDs capacity: 256
• Number of SSDs installed: 1
• SSD capacity: 256
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Audio system: SonicMaster
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: HD
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: Wi-Fi 6 (802.11ax)
• Antenna type: 1x1
• Bluetooth: Yes
• Bluetooth version: 5.3
• USB 2.0 ports quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
• HDMI ports quantity: 1
• HDMI version: 1.4
• Combo headphone/mic port: Yes
• Pointing device: Touchpad
• Numeric keypad: Yes
• Keyboard language: English
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 3
• Battery capacity: 42
• AC adapter power: 48
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 2.4
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Trusted Platform Module (TPM): Yes
• Password protection: Yes
• Password protection type: BIOS/User
• Compliance certificates: REACH
• Sustainability certificates: ENERGY STAR
• Width: 359.7
• Depth: 232.5
• Height: 17.9
• Weight: 1700
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.0015
• Unit Calculated Weight: 2.7
