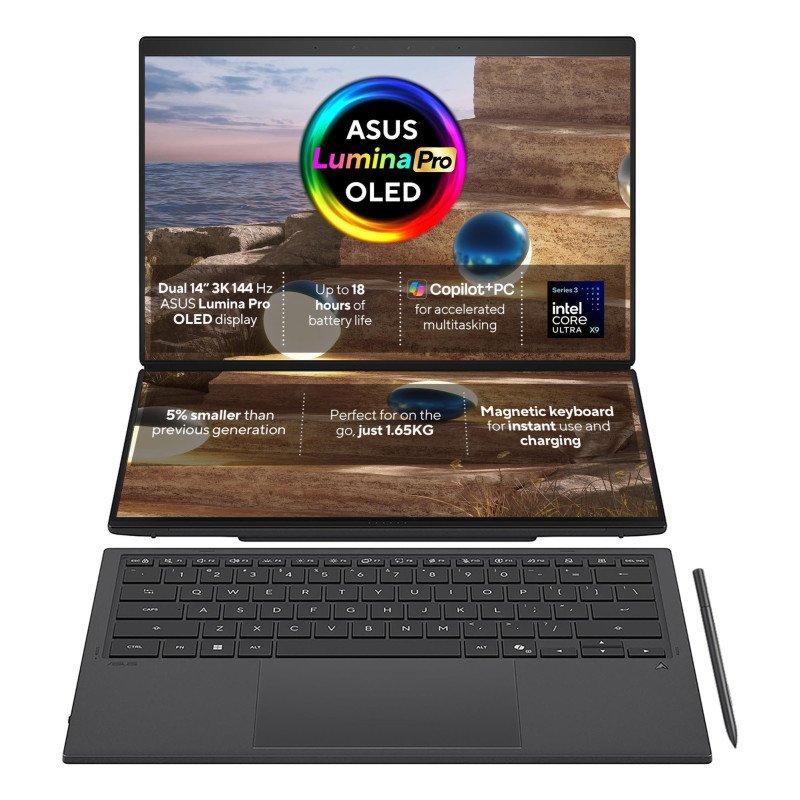

UX8407AA-SN596X

Technical Specifications

• Vendor Homepage: https://www.asus.com/laptops/for-home/zenbook/asus-zenbook-duo-ux8407
• Name: NB UX8407AA CUX9-388H 14"T/32GB/2TB UX8407AA-SN596X ASUS
• Category Code: NB
• Model name: UX8407AA-SN596X
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra X9
• Processor generation: Intel Core Ultra (Series 3)
• Processor model: 388H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 5.1
• Efficient-core base frequency: 2.1
• Processor cache: 18
• Processor cache type: Smart Cache
• Display diagonal: 14
• Display resolution: 2880 x 1800
• Panel type: OLED
• HD type: 3K
• Touchscreen: Yes
• Display number of colours: 1.07 billion colours
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 500
• Maximum display brightness (HDR): 1000
• Colour gamut: 100
• Low Blue Light technology: Yes
• RGB colour space: DCI-P3
• Display response rise/fall: 0.2
• Maximum refresh rate: 144
• Contrast ratio (typical): 1000000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 1000
• Colour name: Moher Gray
• Product type: Hybrid (2-in-1)
• Product colour: Grey
• Form factor: Convertible (Detachable)
• Display back cover material: Ceraluminum
• Housing material: Ceraluminum
• Market positioning: Home
• Country of origin: China
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: ONNX RT/OpenVINO/WebNN/Windows ML
• NPU performance up to: 50
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Memory form factor: On-board
• Maximum internal memory: 32
• Total storage capacity: 2000
• Storage media: SSD
• Total SSDs capacity: 2000
• Number of SSDs installed: 1
• SSD capacity: 2000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc B390
• On-board graphics card 4K support: Yes
• On-board graphics card 8K support: Yes
• Graphics card Open GL support: Yes
• Ray tracing acceleration: Yes
• Audio system: Smart Amp
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Infrared (IR) camera: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 5.4
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB Type-C DisplayPort Alternate Mode: Yes
• Repairability index: 8.4
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Keyboard language: English
• Copilot key: Yes
• Trial software: 1-month trial for new Microsoft 365 customers. Credit card required.
• Operating system installed: Windows 11 Pro
• Bundled software: 3-Month GoPro Premium+ Subscription 1-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2026. 3-Month Goodnotes Essential Subscription 6-Month Dropbox 500GB Subscription 1-Year AS
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 99
• AC adapter power: 100
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 5
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 100
• USB Type-C required charging power (min): 45
• USB Power Delivery (USB PD): Yes
• Width: 310.1
• Depth: 208.6
• Height (front): 19.6
• Height (rear): 23.4
• Weight: 1650
• Bag included: Yes
• Stylus pen: Yes
• Packaging content: Stylus with wireless charger (ASUS Pen SA205H-MPP2.6 support) Sleeve
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01303
• Unit Calculated Weight: 3.8
