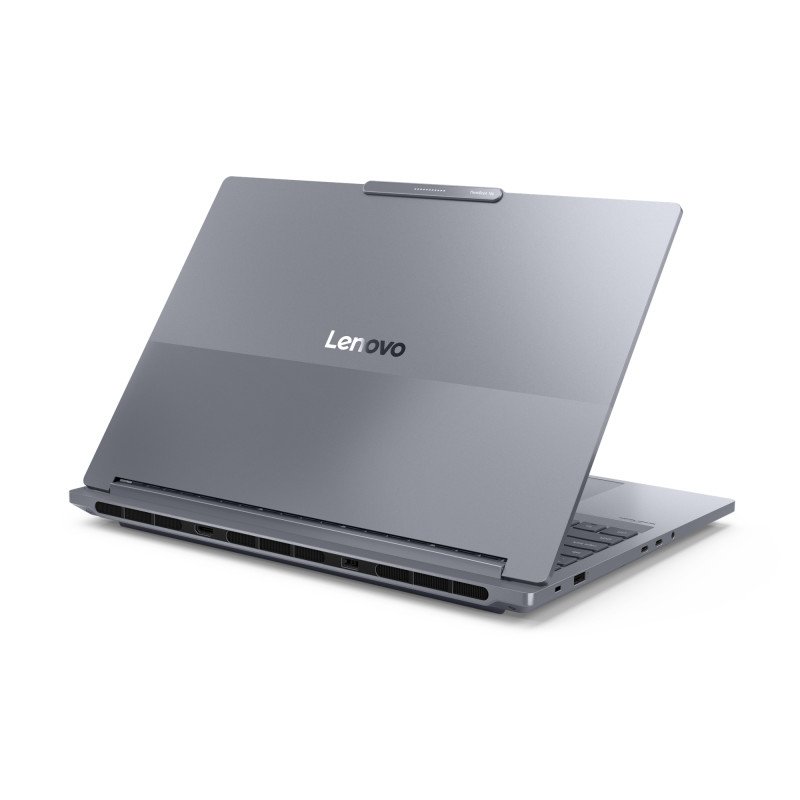

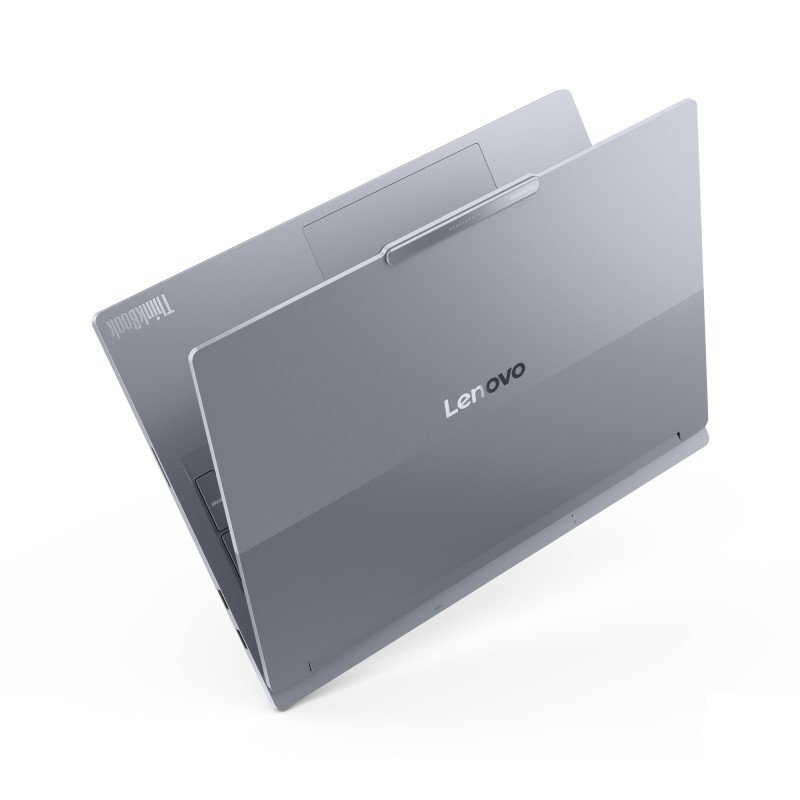

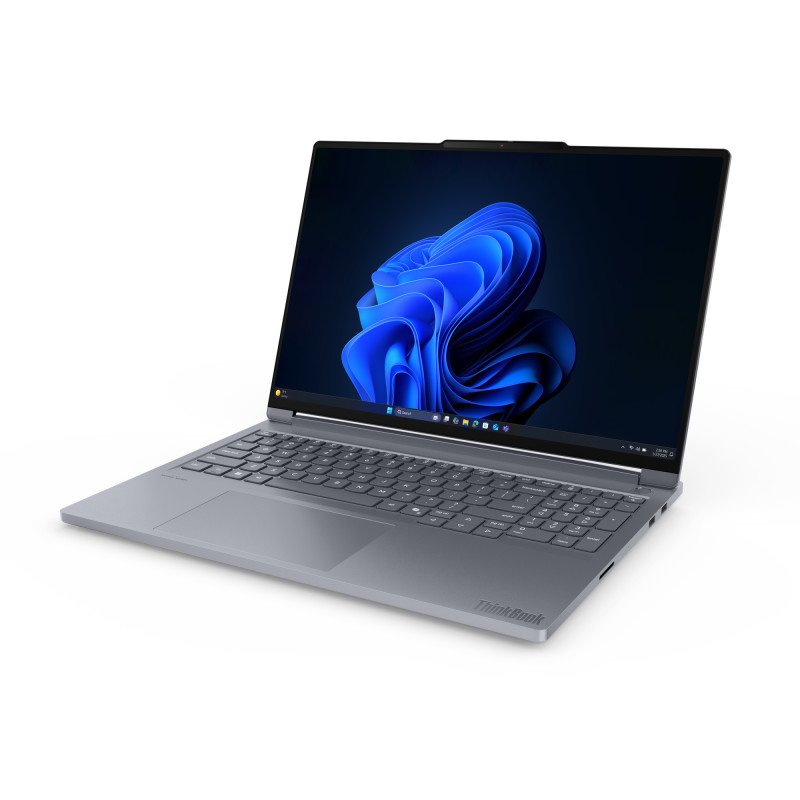

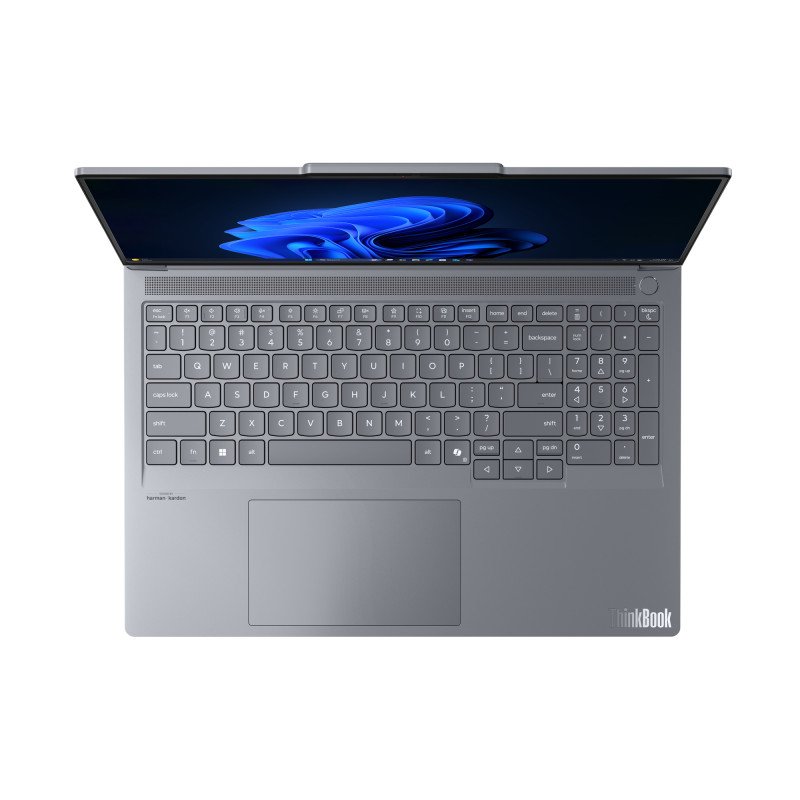

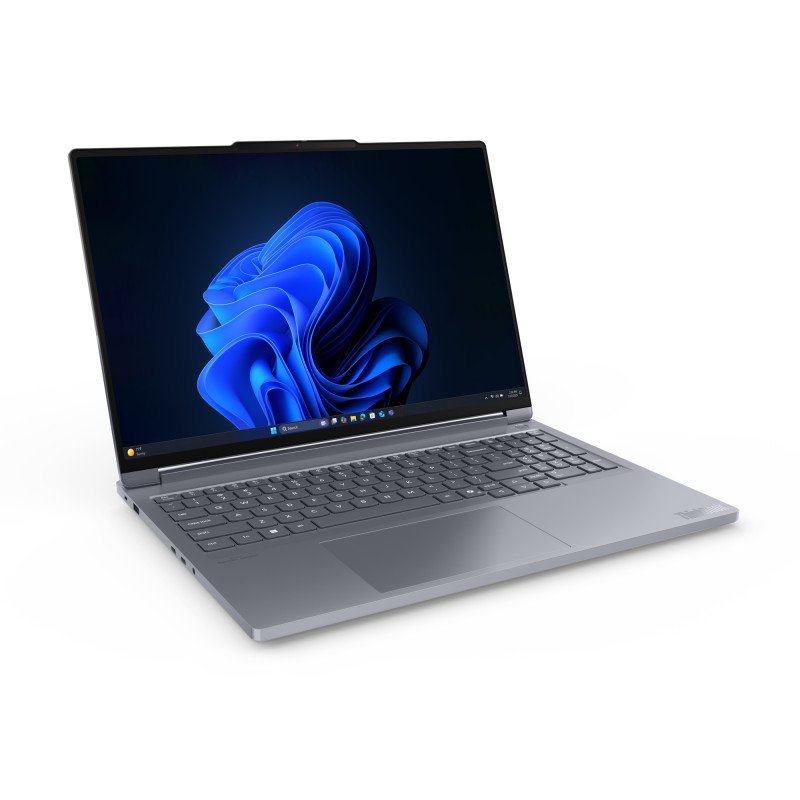

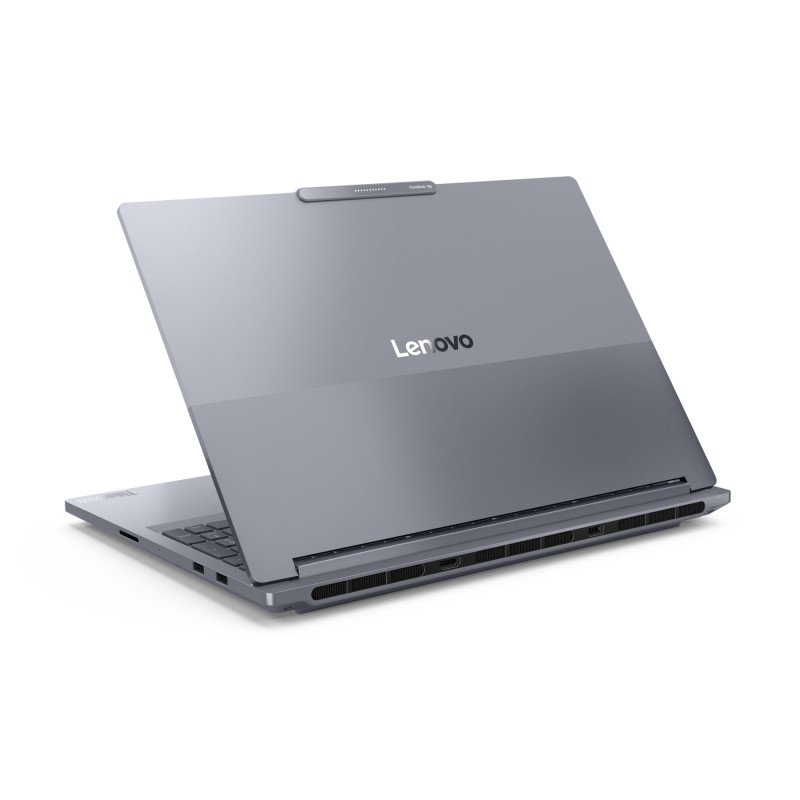

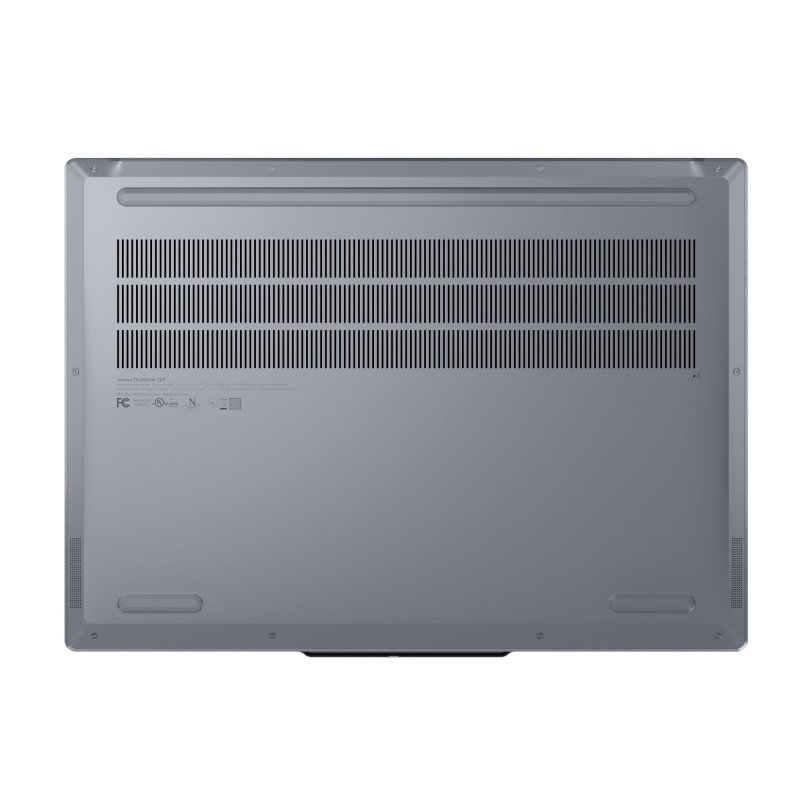

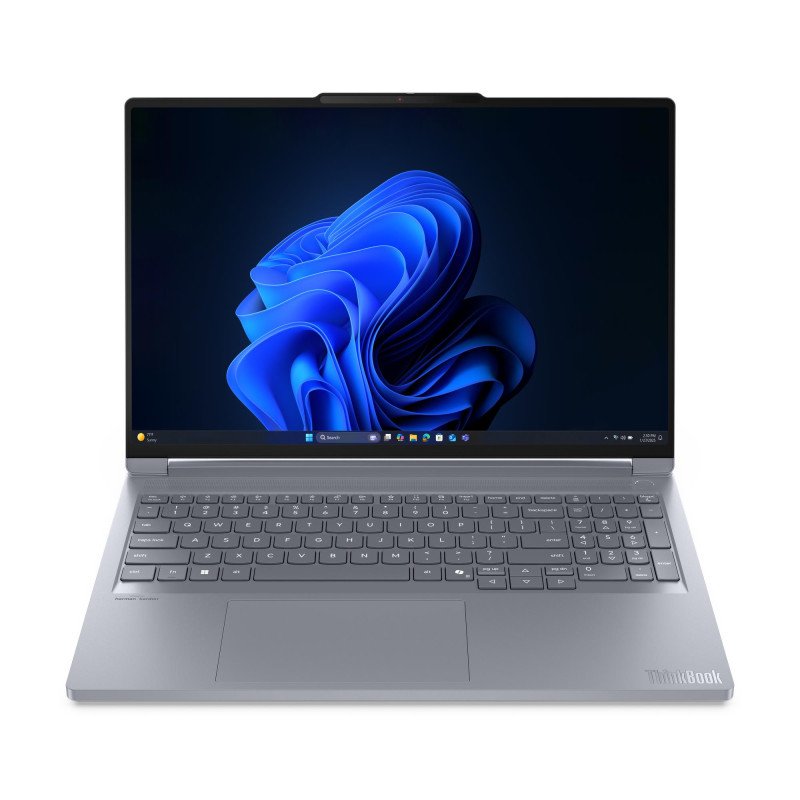

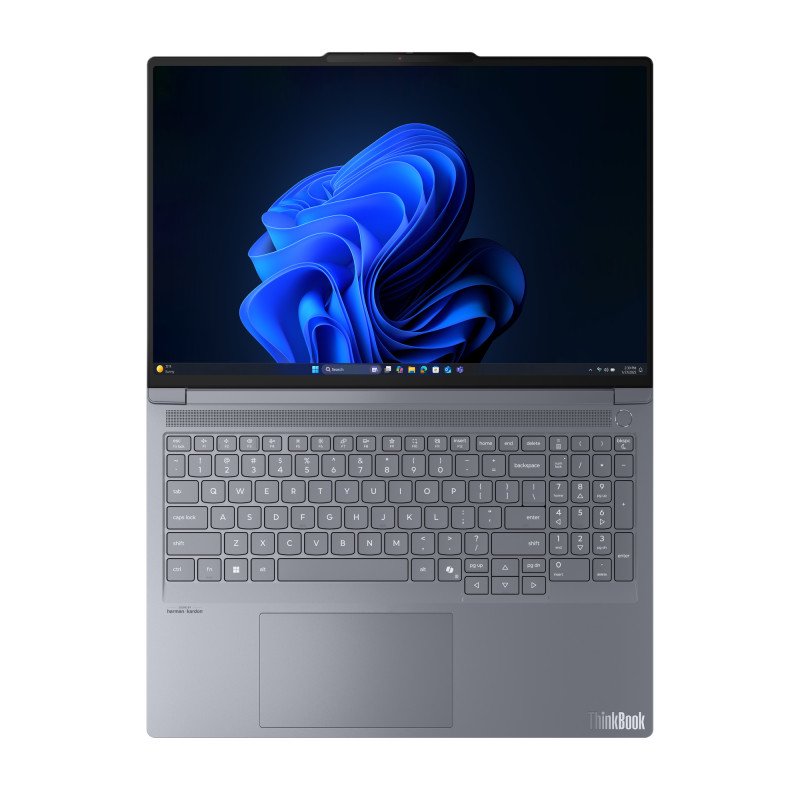

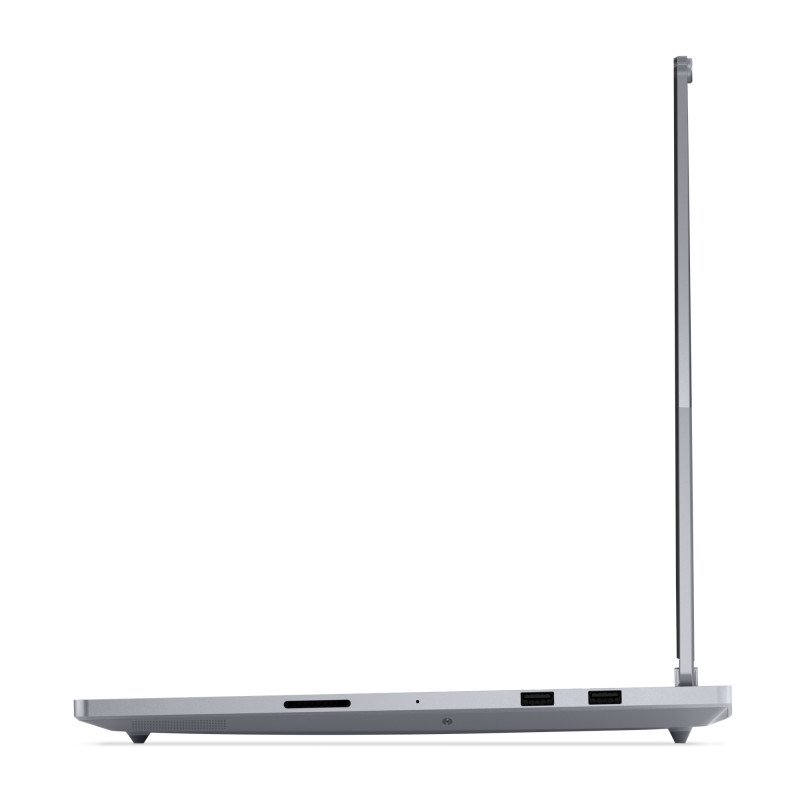

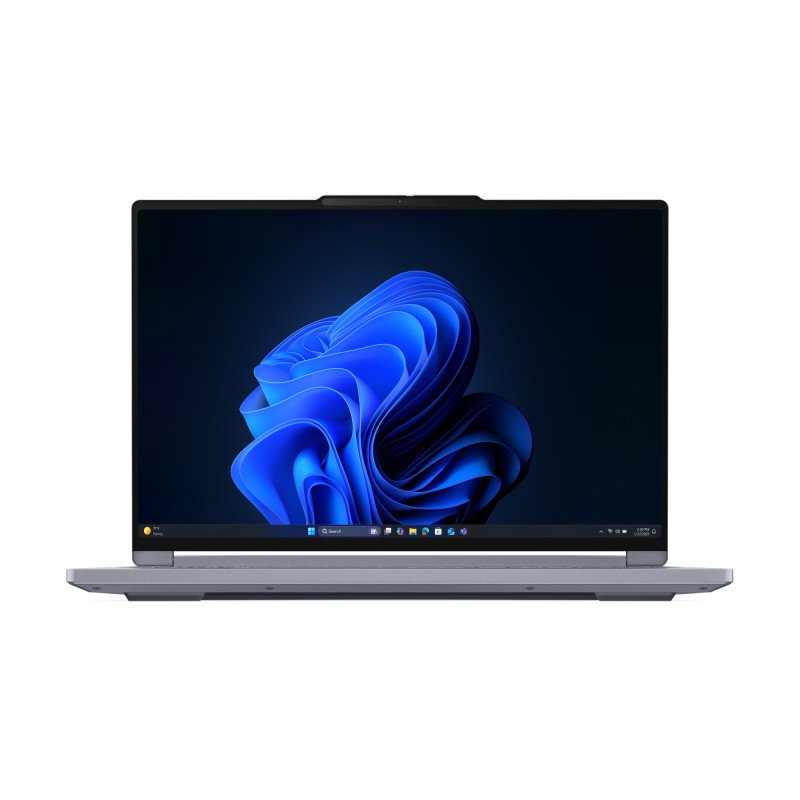

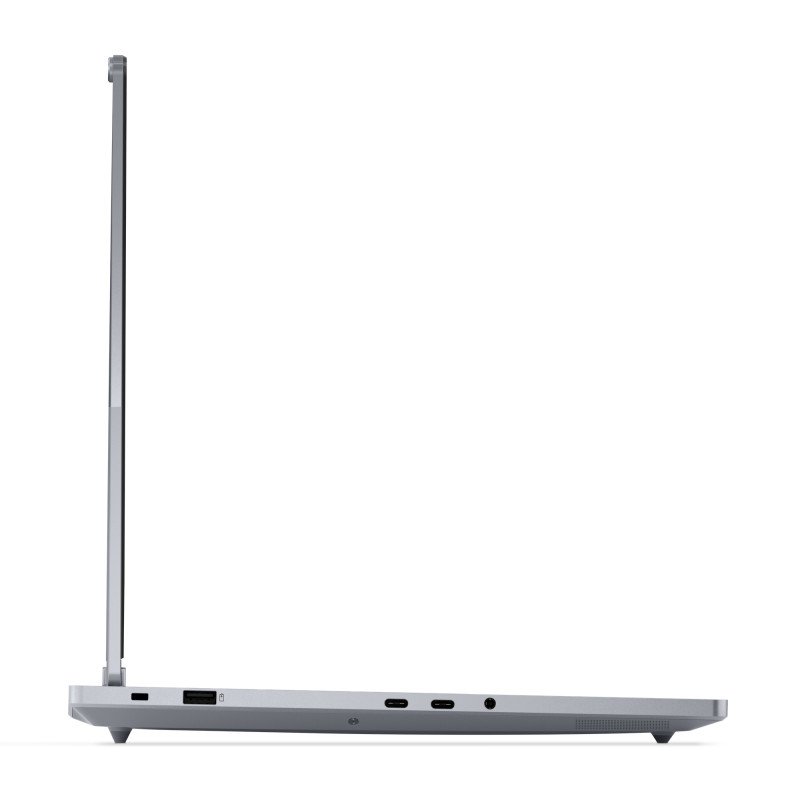

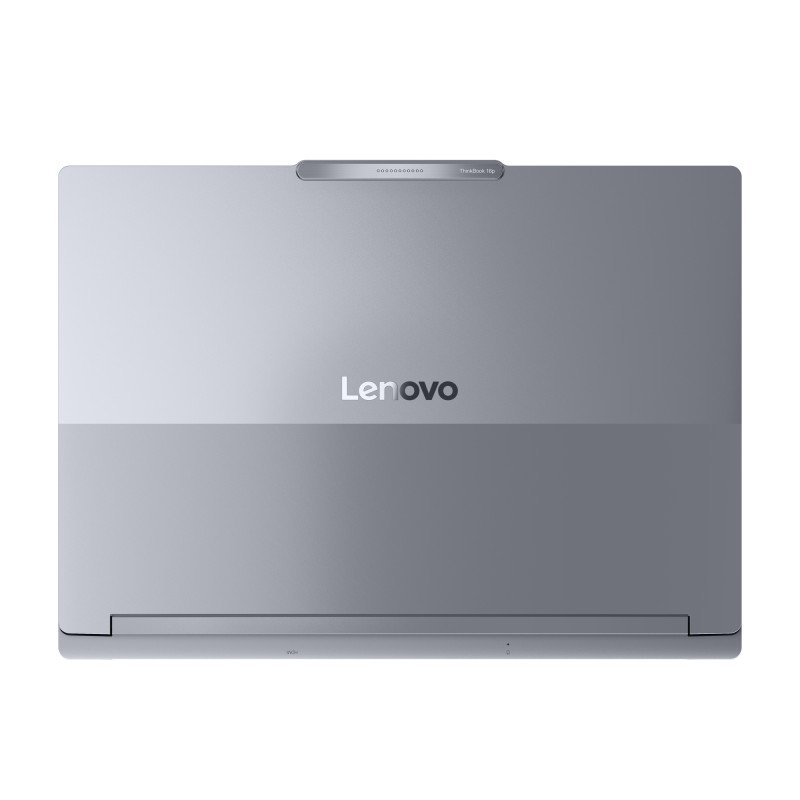

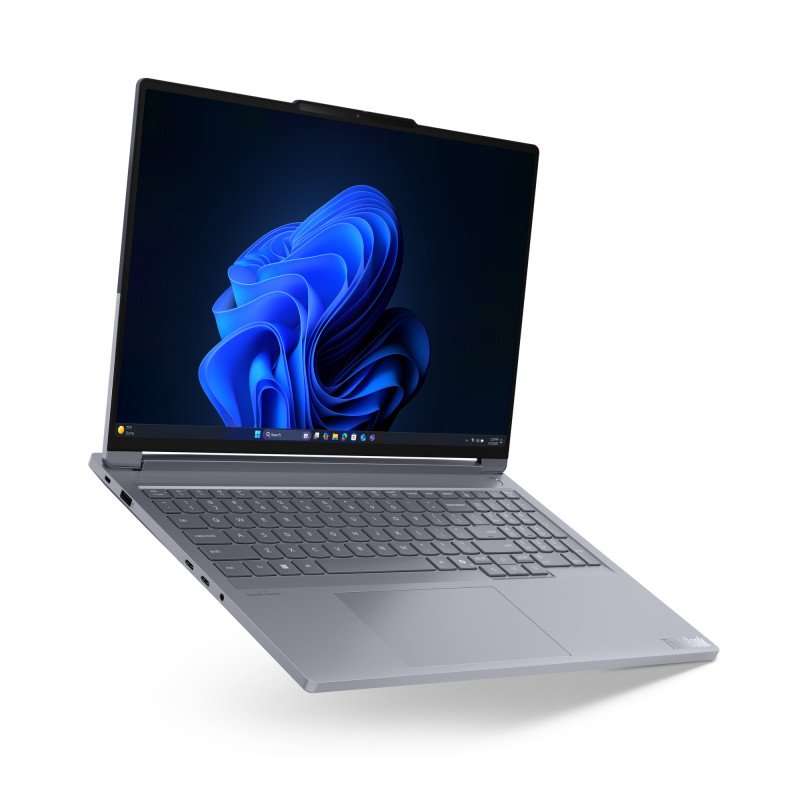

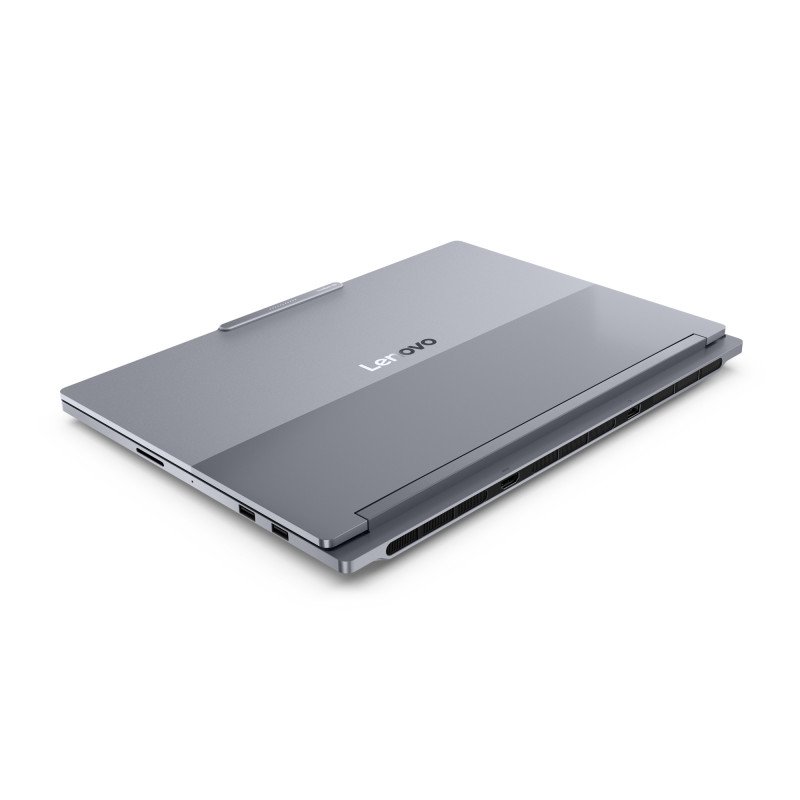

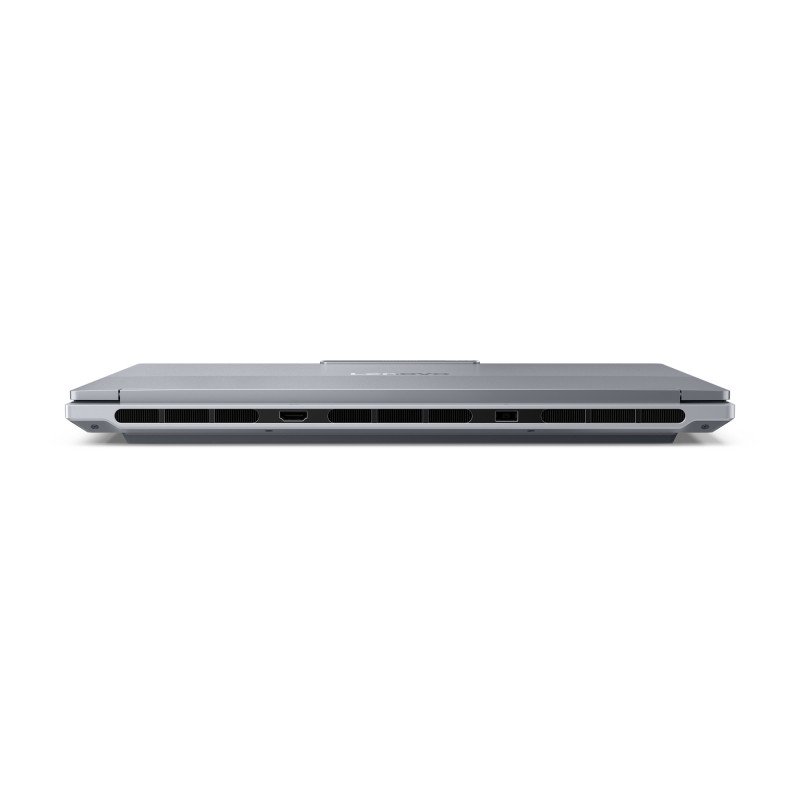

Summary: Lenovo ThinkBook 16p G6 IAX. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 275HX. Display diagonal: 40.6 cm (16"), HD type: 3.2K, Display resolution: 3200 x 2000 pixels. Internal memory: 32 GB, Internal memory type: DDR5-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5060. Operating system installed: Windows 11 Pro. Product colour: Grey
Vendor Homepage: https://www.lenovo.com/gb/en/p/laptops/thinkbook/thinkbookp/thinkbook-16p-gen-6-16-inch-intel/len101b0055?orgRef=https%253A%252F%252Fwww.google.com%252F&srsltid=AfmBOopVANPaqNAvELbZe7vOGRpnjYGf83pcS-2gzbcsQgbFI46sLAXm
Name: NB TB16P G6 CU9-275HX 16"/32GB/1TB 11P 21R0002HRI LENOVO
Category Code: NB
Model name: ThinkBook 16p G6 IAX
Processor manufacturer: Intel
Processor family: Intel Core Ultra 9
Processor generation: Intel Core Ultra (Series 2)
Processor model: 275HX
Processor cores: 24
Processor threads: 24
Processor boost frequency: 5.4
Performance cores: 8
Efficient cores: 16
Performance-core Max Turbo Frequency: 5.4
Efficient-core Max Turbo Frequency: 4.6
Performance-core base frequency: 2.7
Efficient-core base frequency: 2.1
Processor cache: 36
Processor cache type: Smart Cache
Processor socket: BGA 2114
Maximum turbo power: 160
Processor base power: 55
Display diagonal: 16
Display resolution: 3200 x 2000
Panel type: IPS
HD type: 3.2K
LED backlight: Yes
Native aspect ratio: 16:10
Anti-glare screen: Yes
Display brightness: 500
Colour gamut: 100
RGB colour space: DCI-P3
Maximum refresh rate: 165
Contrast ratio (typical): 1200:1
High Dynamic Range (HDR) supported: Yes
High Dynamic Range (HDR) technology: Dolby Vision
Colour name: Luna grey
Product type: Laptop
Product colour: Grey
Form factor: Clamshell
Display back cover material: Aluminium
Housing material: Aluminium
Neural processor unit (NPU): Intel AI Boost
Sparsity support: Yes
Windows Studio effects support: Yes
AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
Total processor performance up to: 36
NPU performance up to: 13
GPU performance up to: 8
Internal memory: 32
Internal memory type: DDR5-SDRAM
Memory clock speed: 5600
Memory form factor: SO-DIMM
Memory layout (slots x size): 2 x 16
Memory slots: 2x SO-DIMM
Maximum internal memory: 64
Memory channels: Dual-channel
Total storage capacity: 1000
Storage media: SSD
Total SSDs capacity: 1000
Number of SSDs installed: 1
SSD capacity: 1000
NVMe: Yes
SSD interface: PCI Express 4.0
M.2 SSD size: 2242 (22 x 42 mm)
SSD form factor: M.2
Card reader integrated: Yes
Compatible memory cards: SD
Discrete GPU manufacturer: NVIDIA
Discrete graphics card: Yes
Discrete graphics card model: NVIDIA GeForce RTX 5060
Discrete graphics memory type: GDDR7
Discrete graphics card memory: 8
On-board GPU manufacturer: Intel
On-board graphics card: Yes
On-board graphics card family: Intel Graphics
On-board graphics card model: Intel Graphics
Audio chip: Realtek ALC3306-CG
Audio system: Dolby Atmos
Number of built-in speakers: 2
Speakers manufacturer: Harman Kardon
Speaker power: 2
Built-in microphone: Yes
Number of microphones: 2
Front camera: Yes
Front camera HD type: Full HD
Front camera resolution: 1920 x 1080
Infrared (IR) camera: Yes
Privacy camera: Yes
Privacy type: Privacy shutter
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Antenna type: 2x2
Bluetooth: Yes
Bluetooth version: 5.4
WWAN: Not installed
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.1
Thunderbolt 4 ports quantity: 2
Intel Thunderbolt 4: Yes
Combo headphone/mic port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB Type-C DisplayPort Alternate Mode: Yes
USB Sleep-and-Charge: Yes
USB Sleep-and-Charge ports: 1
Motherboard chipset: Intel HM870
Pointing device: Touchpad
Keyboard backlit: Yes
Numeric keypad: Yes
Spill-resistant keyboard: Yes
Keyboard language: English
Copilot key: Yes
Operating system language: English/ROM
Trial software: Office
Operating system installed: Windows 11 Pro
Bundled software: Office Trial + Lenovo AI Now
Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 85
Battery life (max): 5.35
Fast charging: Yes
Fast charging time (50%): 30
AC adapter power: 300
AC adapter frequency: 50/60
AC adapter input voltage: 100 - 240
USB Type-C charging port: Yes
USB Power Delivery (USB PD): Yes
Cable lock slot: Yes
Cable lock slot type: Kensington
Fingerprint reader: Yes
Windows Hello: Yes
Trusted Platform Module (TPM): Yes
Trusted Platform Module (TPM) version: 2.0
Password protection: Yes
Password protection type: BIOS/Power on/Supervisor
Operating temperature (T-T): 5 - 35
Storage temperature (T-T): 5 - 43
Operating relative humidity (H-H): 8 - 95
Storage relative humidity (H-H): 5 - 95
Maximum shipping altitude: 3048
Compliance certificates: RoHS
Certification: ErP Lot 6/26 TCO Certified 10.0 Eyesafe Certified 2.0 TÜV Rheinland Low Blue Light (Hardware Solution)
Sustainability certificates: ENERGY STAR/EPEAT Gold
Width: 354.6
Depth: 256.2
Height: 17.9
Weight: 2100
AC adapter included: Yes
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.01426
Unit Calculated Weight: 3.8
