Specifications
AC adapter includedYes
AI software frameworks supported by NPUONNX RT/OpenVINO/WebNN/Windows ML
Category CodeNB
CertificationENERGY STAR® 9.0 EPEATT Gold Registered ErP Lot 6/26 RoHS compliant MIL-STD-810H military test passed (21 test items)
Copilot+ PCYes
Description

  • Intel Core Ultra 9 386H (18MB Cache)
  • 16" 2.8K 2880 x 1800 OLED, NVIDIA GeForce RTX 5060 (8GB)
  • 32GB LPDDR5x-SDRAM & 1000GB SSD

GPU performance up to40
Maximum shipping altitude3048
Motherboard chipsetIntel SoC
NameNB IP5P-16IAH10 CU9-386H 16"/32GB/1TB 83SK0014RM LENOVO
NB Family nameIdeaPad
Neural processor unit (NPU)Intel AI Boost
NPU performance up to50
Operating relative humidity (H-H)8 - 95
Operating temperature (T-T)5 - 35
Sparsity supportYes
Storage relative humidity (H-H)5 - 95
Storage temperature (T-T)5 - 43

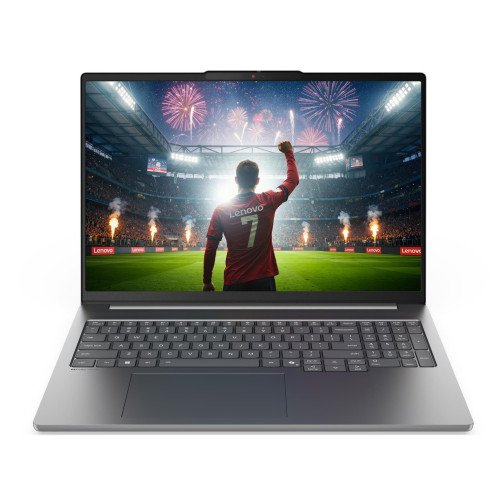

SummaryLenovo IdeaPad Pro 5 16IPH11 Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 386H. Display diagonal: 40.6 cm (16"), HD type: 2.8K, Display resolution: 2880 x 1800 pixels. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5060. Product colour: Grey. Weight: 1.82 kg
Unit Calculated Volume0.01302
Unit Calculated Weight3
Units per Pallet0
Units per Shipping Box1
Vendor Homepagehttps://www.lenovo.com/
Windows Studio effects supportYes
PictureUrlhttps://static.elko.cloud/ProductImages/c44620fc-db2a-4f7c-a5f8-1fbd872610be.Jpeg
thumbnailImagePathhttps://static.elko.cloud/ProductImagesThumbs/c44620fc-db2a-4f7c-a5f8-1fbd872610be.Jpeg
Процесор
Efficient cores8
Efficient-core base frequency1.6
Efficient-core Max Turbo Frequency3.7
Low Power Efficient-core Base Frequency1600
Low Power Efficient-core Max Turbo Frequency3.5
Low Power Efficient-cores4
Maximum turbo power80
Performance cores4
Performance-core base frequency2.1
Performance-core Max Turbo Frequency4.9
Processor base power25
Processor boost frequency4.9
Processor cache18
Processor cache typeSmart Cache
Processor cores16
Processor familyIntel Core Ultra 9
Processor manufacturerIntel
Processor model386H
Processor threads16
Графика
Discrete GPU manufacturerNVIDIA
Discrete graphics cardYes
Discrete graphics card memory8
Discrete graphics card modelNVIDIA GeForce RTX 5060
On-board GPU manufacturerIntel
On-board graphics cardYes
On-board graphics card familyIntel® Graphics
On-board graphics card modelIntel® Graphics
Меморија (RAM)
Internal memory32
Internal memory typeLPDDR5x-SDRAM
Maximum internal memory32
Memory channelsDual-channel
Memory form factorOn-board
Диск (SSD/HDD)
Card reader integratedYes
Compatible memory cardsSD
M.2 SSD size2242 (22 x 42 mm)
Number of SSDs installed1
NVMeYes
SSD Capacity1000
SSD form factorM.2
SSD interfacePCI Express 4.0
Storage mediaSSD
Total SSDs capacity1000
Total storage capacity1000
Екран
Colour gamut100
Contrast ratio (typical)1000000:1
Display diagonal16
Display resolution2880 x 1800
Display surfaceGloss
HD type2.8K
High Dynamic Range (HDR) supportedYes
High Dynamic Range (HDR) technologyDisplayHDR True Black 1000
LED backlightYes
Maximum display brightness (HDR)1100
Maximum refresh rate120
Native aspect ratio16:10
Panel typeOLED
RGB colour spaceDCI-P3
Standard Dynamic Range (SDR) brightness500
Мрежа и Конекција
BluetoothYes
Bluetooth version5.4
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
WWANNot installed
Портови и Интерфејси
Combo headphone/mic portYes
HDMI ports quantity1
HDMI version2.1
Thunderbolt 4 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB Sleep-and-ChargeYes
USB Sleep-and-Charge ports1
USB Type-C DisplayPort Alternate ModeYes
Тастатура
Copilot keyYes
Keyboard backlitYes
Keyboard languageEnglish
Numeric keypadYes
Pointing deviceTouchpad
Аудио
Audio systemDolby Atmos
Built-in microphoneYes
Number of built-in speakers2
Number of microphones2
Speaker power2
Камера
Front cameraYes
Front camera HD typeFull HD
Front camera resolution1920 x 1080
Infrared (IR) cameraYes
Privacy cameraYes
Privacy typePrivacy shutter
Батерија
Battery capacity99.9
Battery life (max)11.5
Battery technologyLithium-Ion (Li-Ion)
Continuous video playback time (max)29.4
Fast chargingYes
Напојување
AC adapter frequency50 - 60
AC adapter input voltage100 - 240
AC adapter power170
USB Power Delivery (USB PD)Yes
USB Type-C charging portYes
USB Type-C required charging power (max)100
USB Type-C required charging power (min)65
Дизајн и Боја
Colour nameLuna grey
Display back cover materialAluminium
Form factorClamshell
Housing materialAluminium
Product colourGrey
Product TypeLaptop
Димензии и Тежина
Depth250
Height15.64
Width356
Weight1820
Безбедност
Password protectionYes
Password protection typeHDD/Power on/User
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
