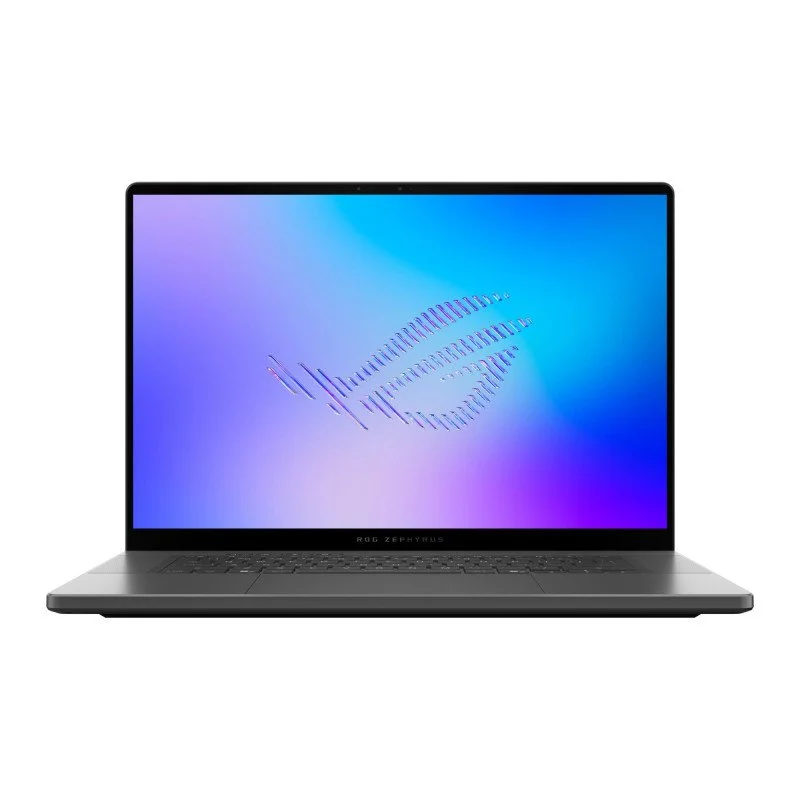

ROG Zephyrus GU606AX-TB051X

Technical Specifications

• Summary: ASUS ROG Zephyrus G16 GU606AX-TB051X. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 9, Processor model: 386H. Display diagonal: 40.6 cm (16"), HD type: 2.5K, Display resolution: 2560 x 1600 pixels. Internal memory: 64 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Graphics, Discrete graphics card model: NVIDIA GeForce RTX 5090. Operating system installed: Windows 11 Pro. Product colour: Grey
• Vendor Homepage: https://rog.asus.com/laptops/rog-zephyrus/rog-zephyrus-g16-2026/
• Name: NB GU606AX CU9-386H 16" 64GB/1TB W11P GU606AX-TB051X ASUS
• Category Code: NB
• Model name: GU606AX-TB051X
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 9
• Processor generation: Intel Core Ultra (Series 3)
• Processor model: 386H
• Processor cores: 16
• Processor threads: 16
• Processor boost frequency: 4.9
• Performance cores: 4
• Efficient cores: 8
• Low Power Efficient-cores: 4
• Performance-core Max Turbo Frequency: 4.9
• Efficient-core Max Turbo Frequency: 3.9
• Low Power Efficient-core Max Turbo Frequency: 3.5
• Performance-core base frequency: 2.1
• Efficient-core base frequency: 1.6
• Low Power Efficient-core Base Frequency: 1600
• Processor cache: 18
• Processor cache type: Smart Cache
• Maximum turbo power: 80
• Processor base power: 25
• Display diagonal: 16
• Display resolution: 2560 x 1600
• Panel type: OLED
• HD type: 2.5K
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Colour gamut: 100
• RGB colour space: DCI-P3
• Colour name: Eclipce Grey
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Market positioning: Gaming
• Introduction year: 2026
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 99
• NPU performance up to: 50
• GPU performance up to: 77
• Internal memory: 64
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 8533
• Memory form factor: On-board
• Maximum internal memory: 64
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• SSD form factor: M.2
• Card reader integrated: Yes
• Compatible memory cards: SD
• Discrete GPU manufacturer: NVIDIA
• Discrete graphics card: Yes
• Discrete graphics card model: NVIDIA GeForce RTX 5090
• Discrete graphics memory type: GDDR7
• Discrete graphics card memory: 24
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Total Graphics Power (TGP): 135
• NVIDIA G-SYNC: Yes
• Audio system: Dolby Atmos
• Number of built-in speakers: 4
• Built-in microphone: Yes
• Front camera: Yes
• Front camera HD type: Full HD
• Front camera resolution: 1920 x 1080
• Infrared (IR) camera: Yes
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• Bluetooth: Yes
• Bluetooth version: 6.0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 1
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB Type-C DisplayPort Alternate Mode: Yes
• Pointing device: Touchpad
• Keyboard backlit: Yes
• Keyboard backlit colour: RGB
• Keyboard backlit zone: 1-zone RGB
• Copilot key: Yes
• Operating system architecture: 64-bit
• Trial software: 1-month trial for new Microsoft 365 customers; McAfee 30 days free trial
• Operating system installed: Windows 11 Pro
• Bundled software: Xbox Game Pass for PC_3 months (*Terms and conditions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets determined at activation. Game catalog varies by region, device, and time period.)
• Battery technology: Lithium-Ion (Li-Ion)
• Number of battery cells: 4
• Battery capacity: 90
• Fast charging: Yes
• Fast charging time (50%): 30
• AC adapter power: 250
• AC adapter frequency: 50 - 60
• AC adapter input voltage: 100 - 240
• AC adapter output current: 12.5
• AC adapter output voltage: 20
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Face recognition: Yes
• Windows Hello: Yes
• Password protection: Yes
• Password protection type: BIOS/User
• Width: 354
• Depth: 246
• Height (front): 14.9
• Height (rear): 17.9
• Weight: 1950
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.02519
• Unit Calculated Weight: 5.5
• NB Family name: ROG Zephyrus
