ThinkPad

Technical Specifications

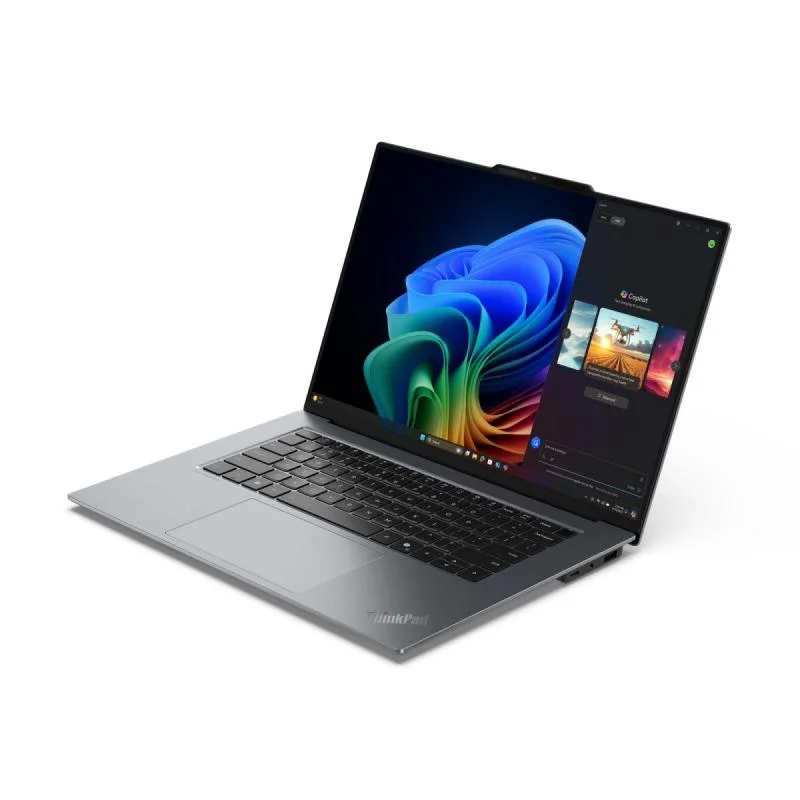

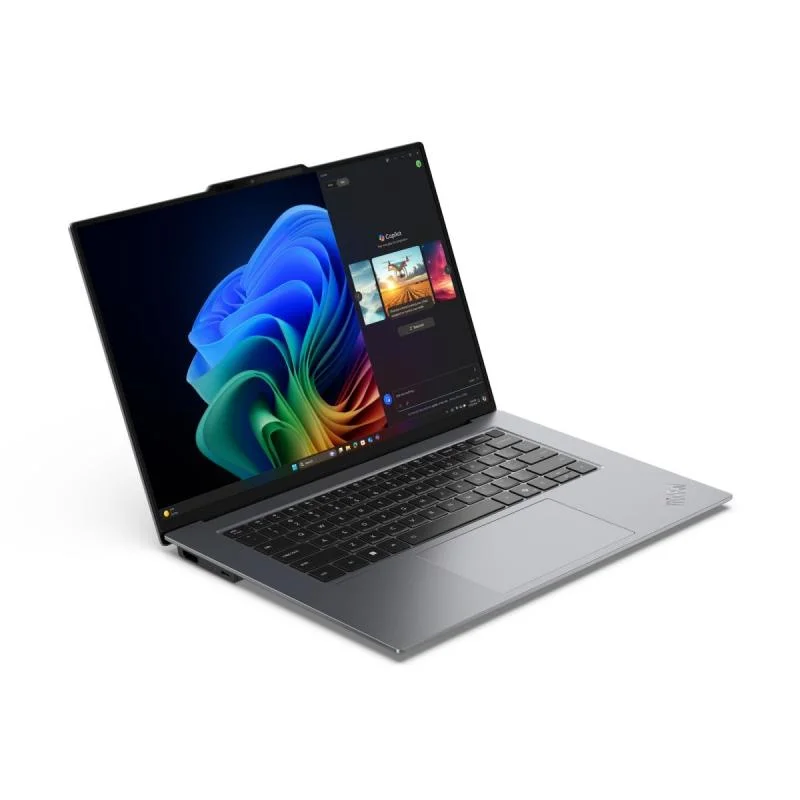

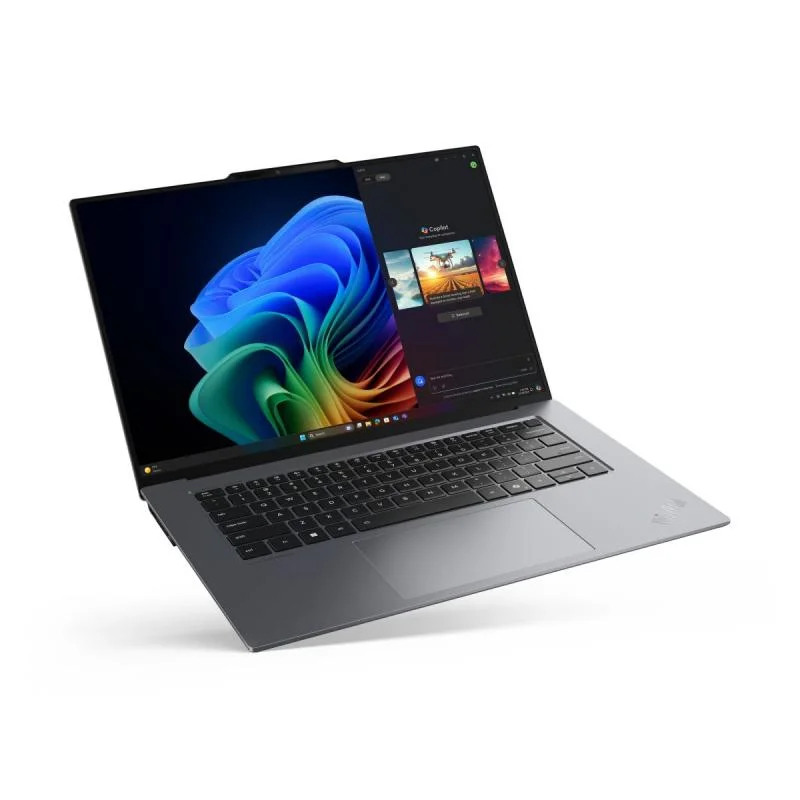

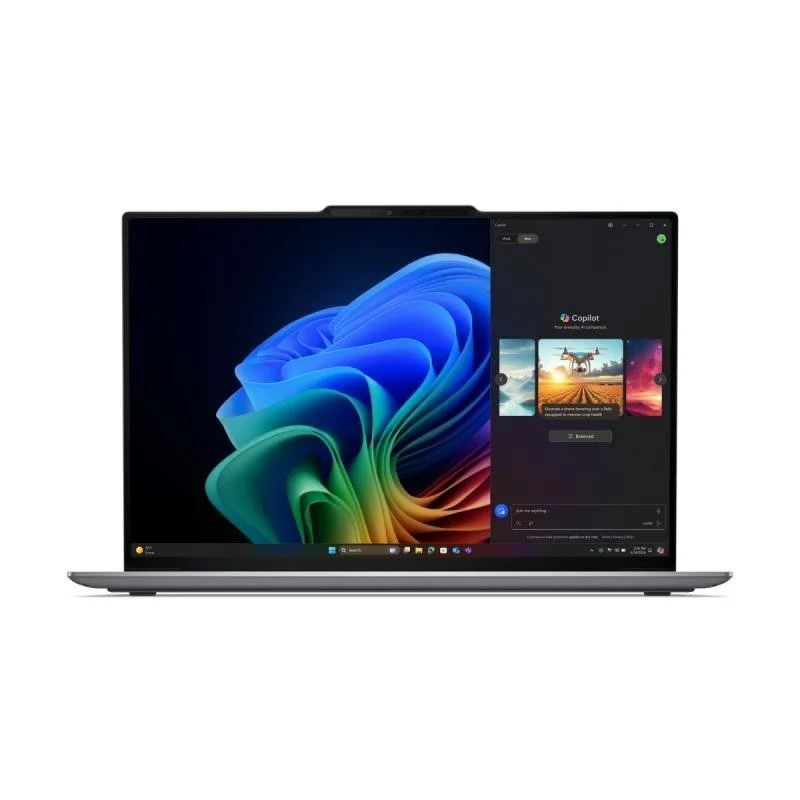

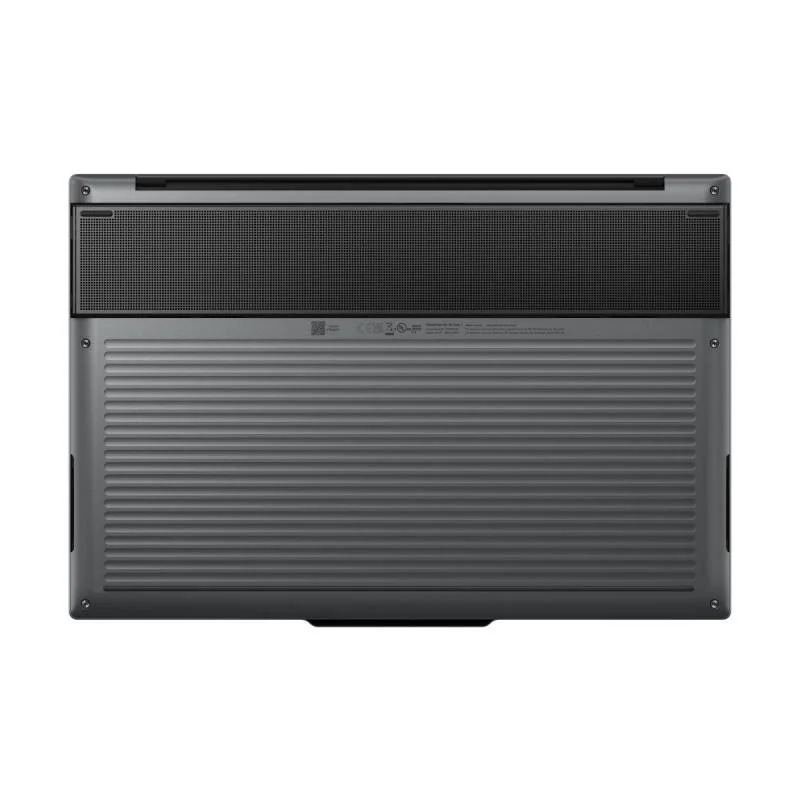

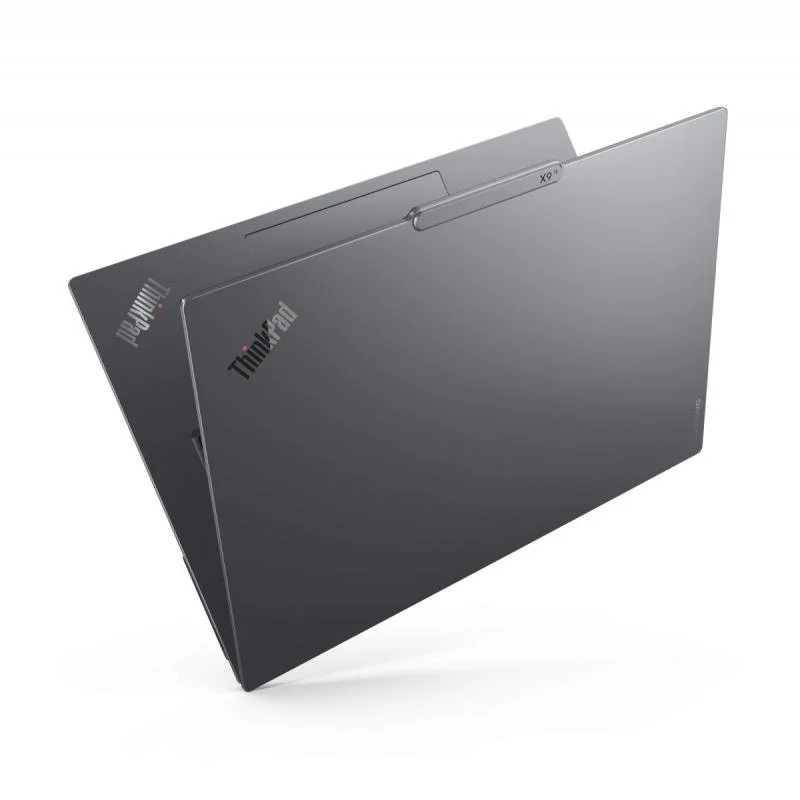

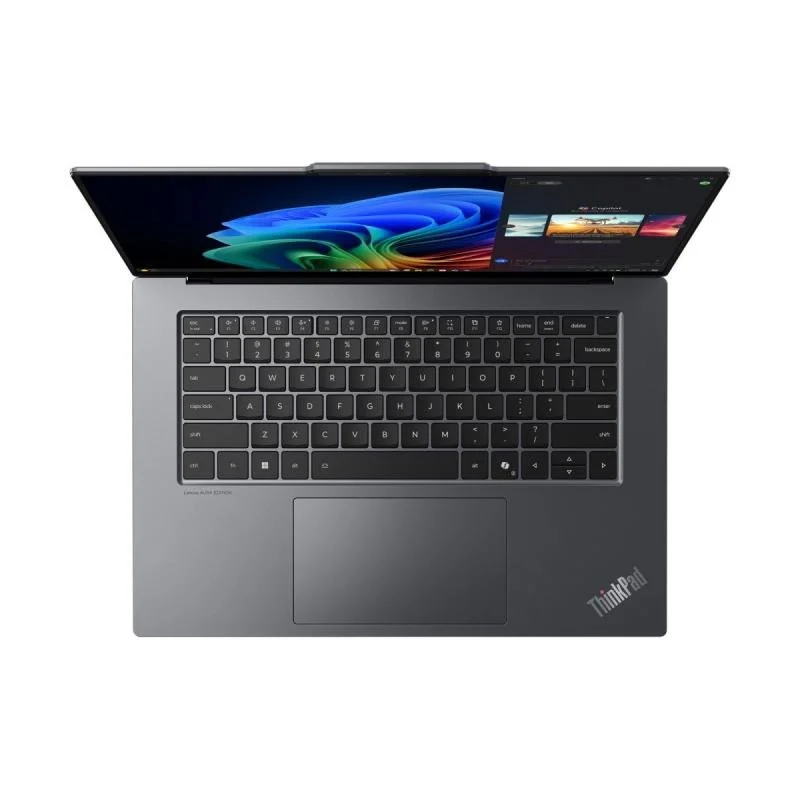

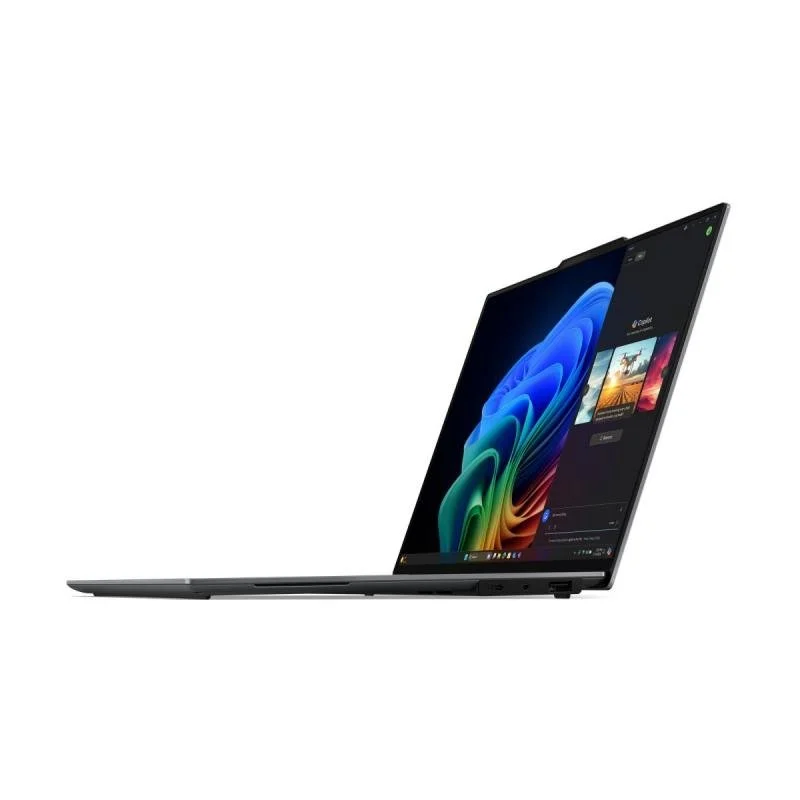

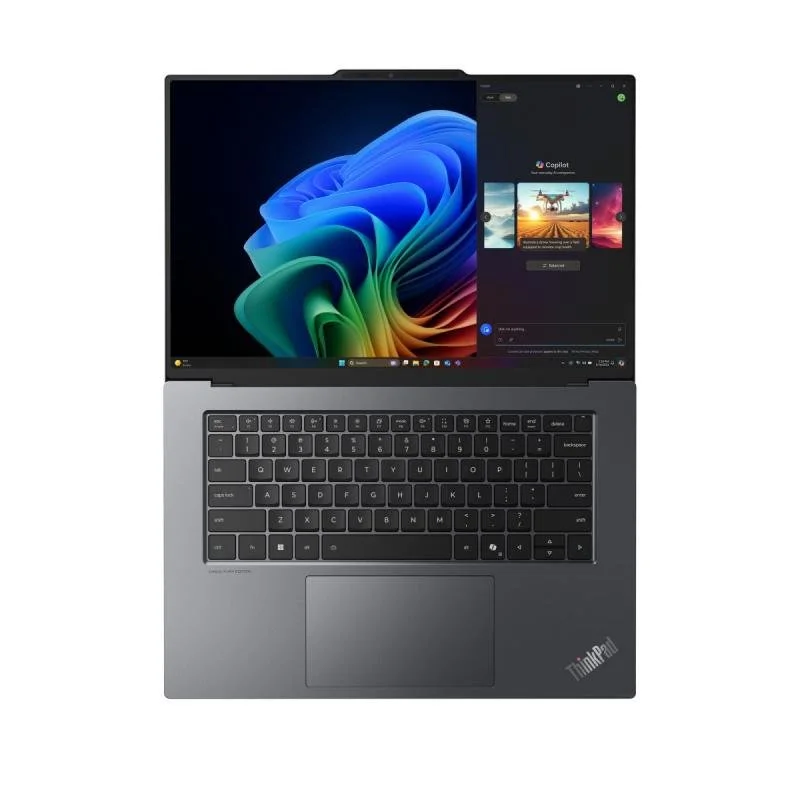

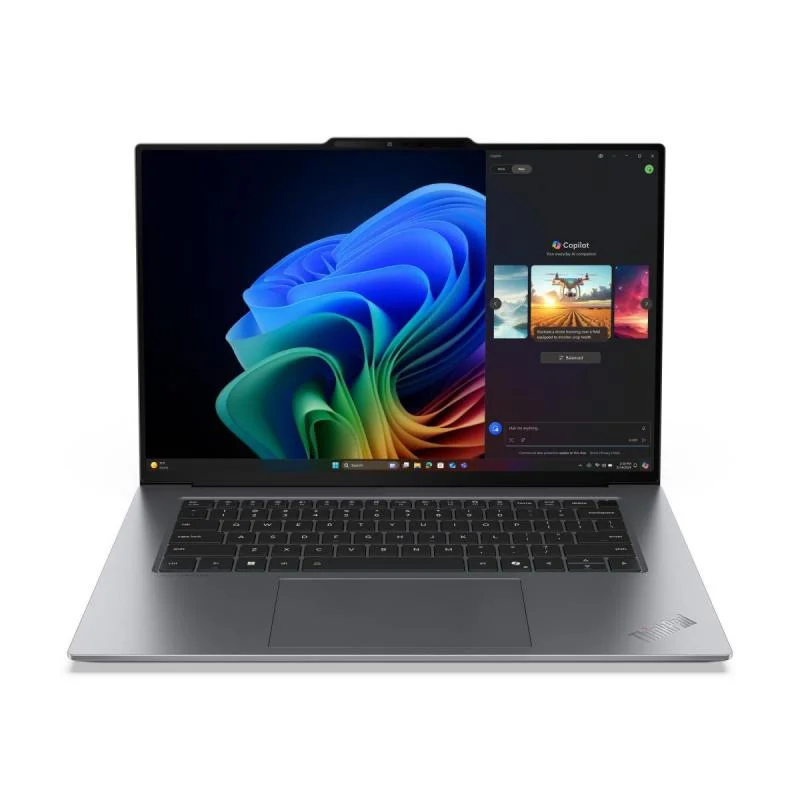

• Summary: Lenovo ThinkPad X9-15 Gen 1 Aura Edition Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 258V. Display diagonal: 38.9 cm (15.3"), HD type: 2.8K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel Arc Graphics 140V. Operating system installed: Windows 11 Pro. Product colour: Grey
• Vendor Homepage: https://www.lenovo.com/gb/en/p/laptops/thinkpad/thinkpadx9/thinkpad-x9-aura-edition-15-inch-intel/len101t0111#features
• Name: NB TP X9-15 G1 CU7-258V 15"T/32GB/1TB 11P 21Q6001FRI LENOVO
• Category Code: NB
• NB Family name: ThinkPad
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 2)
• Processor model: 258V
• Processor cores: 8
• Processor threads: 8
• Processor boost frequency: 4.8
• Performance cores: 4
• Low Power Efficient-cores: 4
• Performance-core Max Turbo Frequency: 4.8
• Low Power Efficient-core Max Turbo Frequency: 3.7
• Performance-core base frequency: 2.2
• Low Power Efficient-core Base Frequency: 2200
• Processor cache: 12
• Processor cache type: Smart Cache
• Maximum turbo power: 37
• Processor base power: 17
• Display diagonal: 15.3
• Display resolution: 2880 x 1800
• Panel type: OLED
• HD type: 2.8K
• Touchscreen: Yes
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-reflective coating: Yes
• Display brightness: 500
• Colour gamut: 100
• RGB colour space: DCI-P3
• Maximum refresh rate: 120
• Contrast ratio (typical): 100000:1
• High Dynamic Range (HDR) supported: Yes
• High Dynamic Range (HDR) technology: DisplayHDR True Black 600/Dolby Vision
• Product type: Laptop
• Product colour: Grey
• Form factor: Clamshell
• Housing material: Aluminium
• Copilot+ PC: Yes
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: DirectML/ONNX RT/OpenVINO/WebNN/Windows ML
• Total processor performance up to: 115
• NPU performance up to: 47
• GPU performance up to: 64
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 8533
• Memory form factor: On-board
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 4.0
• M.2 SSD size: 2242 (22 x 42 mm)
• SSD form factor: M.2
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Arc Graphics
• On-board graphics card model: Intel Arc Graphics 140V
• Audio chip: Cirrus Logic CS42L43
• Audio system: Dolby Atmos
• Number of built-in speakers: 4
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera resolution (numeric): 8
• Front camera HD type: Ultra HD
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 7 BE201
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Not installed
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 2
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel SoC
• Pointing device: ThinkPad UltraNav
• Keyboard backlit: Yes
• Spill-resistant keyboard: Yes
• Keyboard language: English
• Copilot key: Yes
• Operating system language: English/ROM
• Microsoft Copilot: Yes
• Operating system installed: Windows 11 Pro
• Bundled software: Intel Connectivity Performance Suite + Lenovo AI Now
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 80
• AC adapter power: 65
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Power Delivery (USB PD): Yes
• Fingerprint reader: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/Power on/SSD/Supervisor
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Compliance certificates: RoHS
• Certification: ENERGY STAR 8.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified 10.0 Intel Evo Platform Eyesafe Certified 2.0 TÜV Rheinland Eye Comfort Certification (5-star) MIL-STD-810H military test passed
• Sustainability certificates: ENERGY STAR/EPEAT Gold/ErP/TCO
• Width: 339.55
• Depth: 228.5
• Height: 12.9
• Weight: 1400
• AC adapter included: Yes
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01402
• Unit Calculated Weight: 2.9
