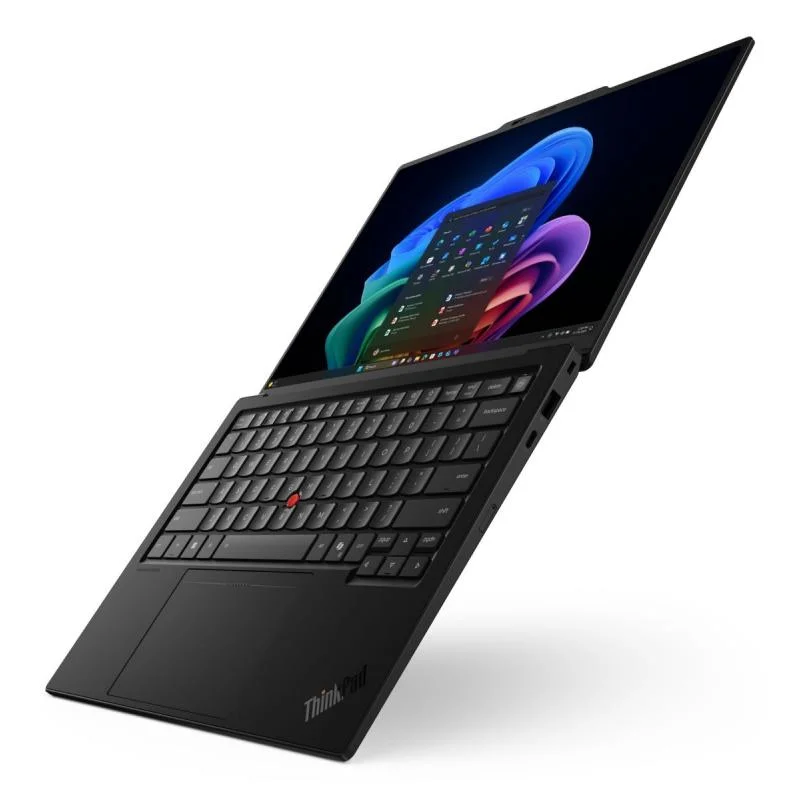

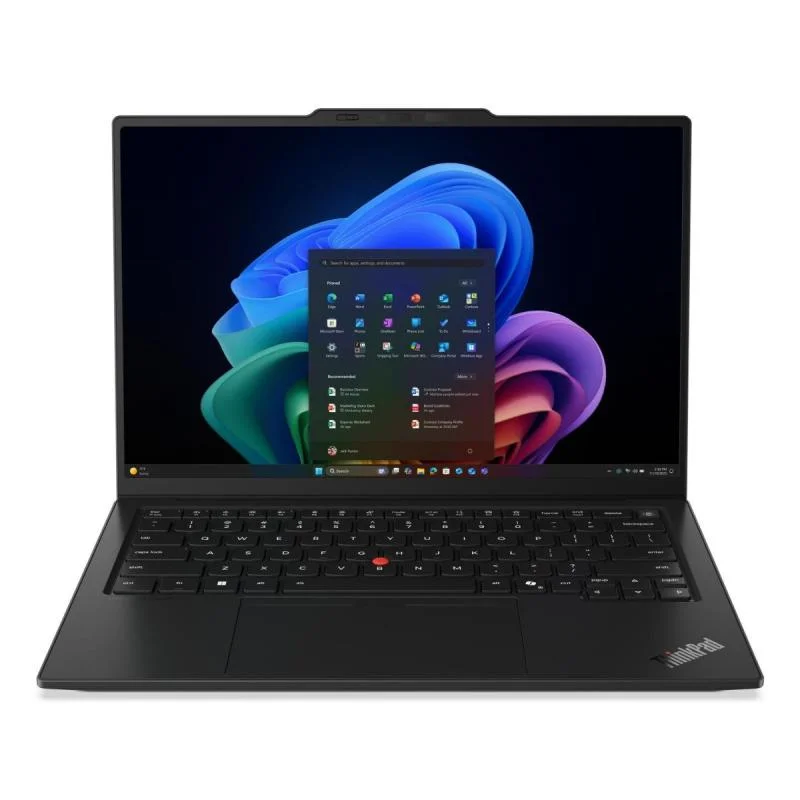

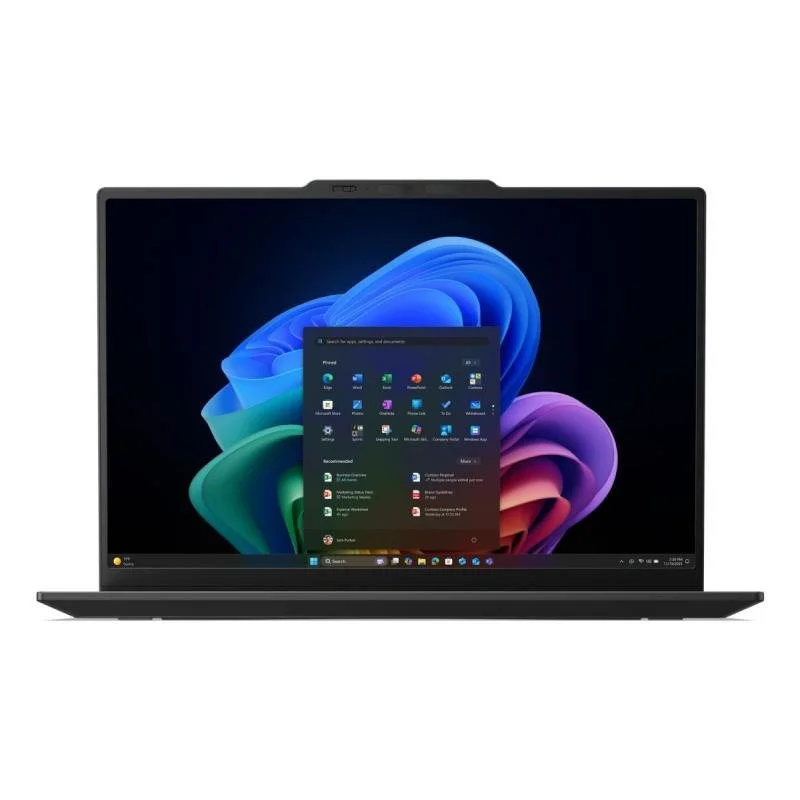

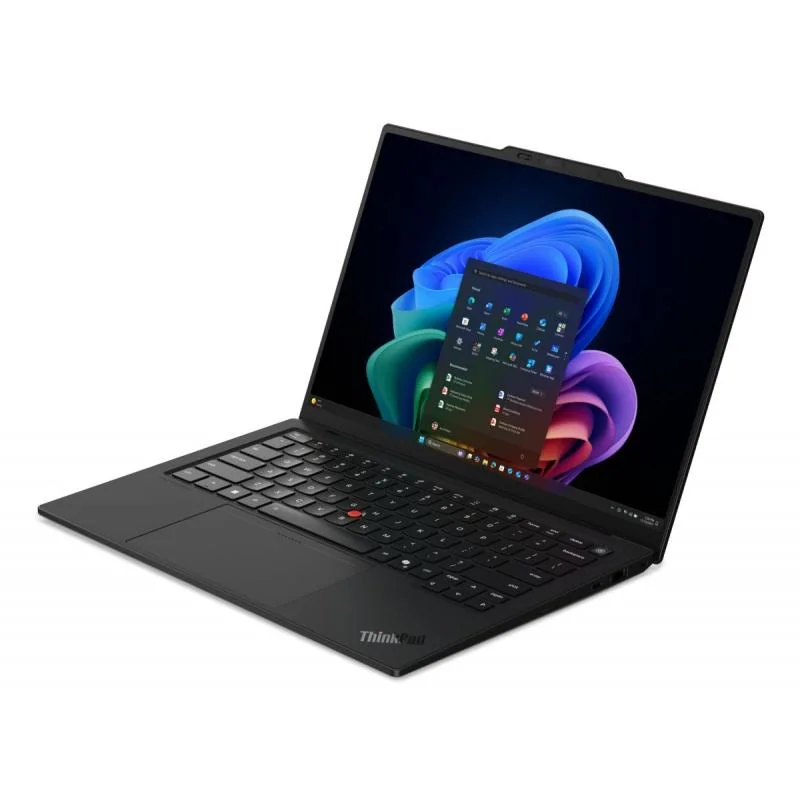

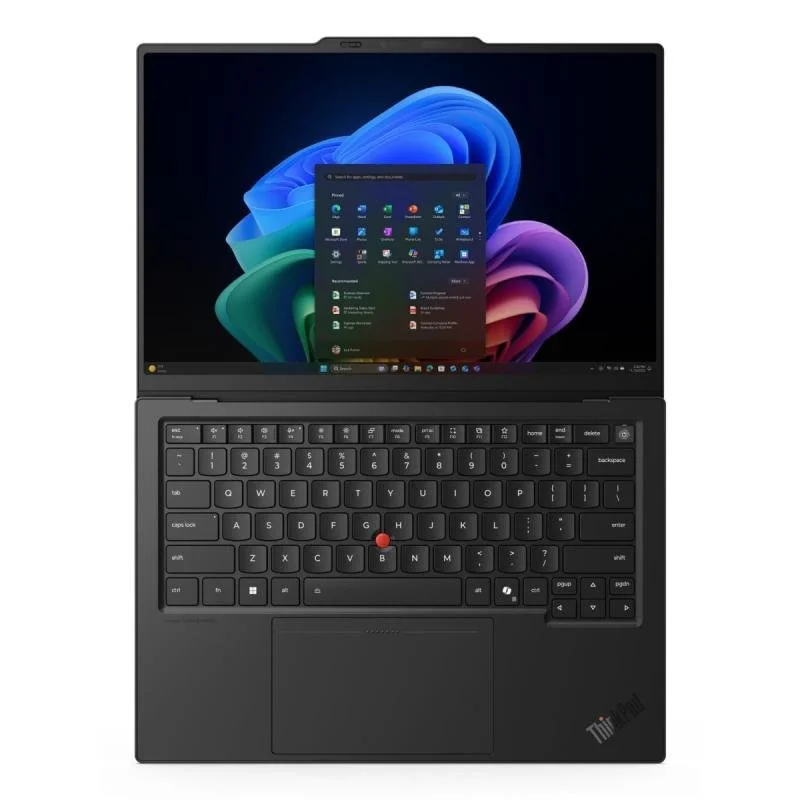

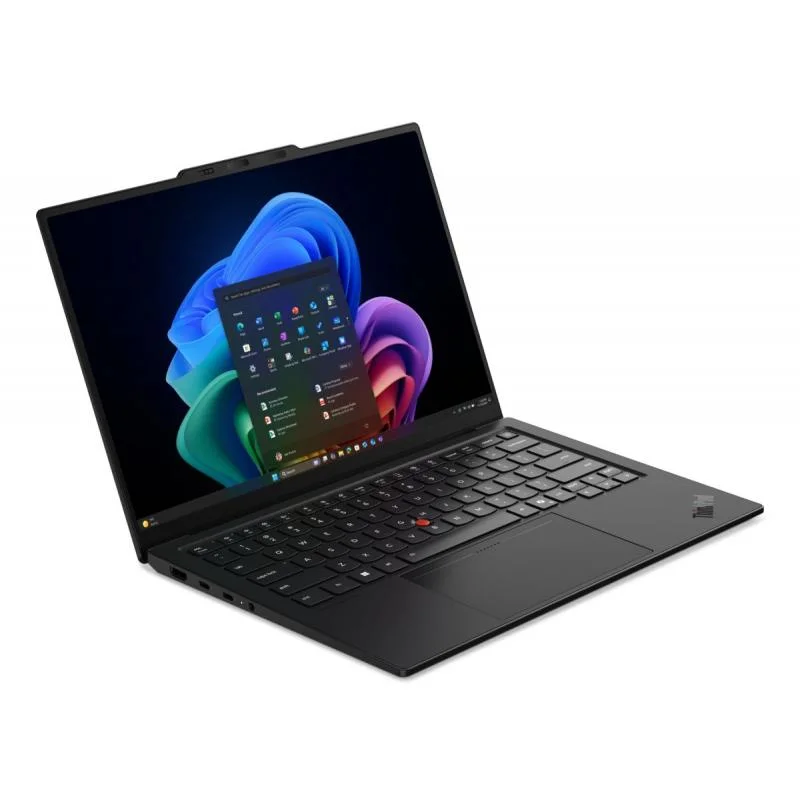

ThinkPad X1 Carbon Gen 14 Aura Edition Copilot+ PC

Technical Specifications

• Summary: Lenovo ThinkPad X1 Carbon Gen 14 Aura Edition Copilot+ PC. Product type: Laptop, Form factor: Clamshell. Processor family: Intel Core Ultra 7, Processor model: 355. Display diagonal: 35.6 cm (14"), HD type: WUXGA, Display resolution: 1920 x 1200 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 1 TB, Storage media: SSD. On-board graphics card model: Intel® Graphics. Operating system installed: Windows 11 Pro. Product colour: Black
• Vendor Homepage: https://www.lenovo.com/gb/en/p/laptops/thinkpad/thinkpadx1/lenovo-thinkpad-x1-carbon-gen-14-aura-edition-14-inch-intel/len101t0159?srsltid=AfmBOoqkIDAndJP-BoNo5tmubUAhBBZ7oTtVSHdyi9747jMAI5Tuh4jq
• Name: NB TP X1 CARB G14 CU7-355 14"/32GB/1TB 11P 21V7002FRI LENOVO
• Category Code: NB
• Model name: ThinkPad X1 Carbon Gen 14 Aura Edition Copilot+ PC
• Processor manufacturer: Intel
• Processor family: Intel Core Ultra 7
• Processor generation: Intel Core Ultra (Series 3)
• Processor model: 355
• Processor cores: 8
• Processor threads: 8
• Processor boost frequency: 4.7
• Performance cores: 4
• Low Power Efficient-cores: 4
• Performance-core Max Turbo Frequency: 4.7
• Low Power Efficient-core Max Turbo Frequency: 3.5
• Performance-core base frequency: 2.3
• Efficient-core base frequency: 1.7
• Low Power Efficient-core Base Frequency: 1700
• Processor cache: 12
• Processor cache type: Smart Cache
• Processor socket: FCBGA2540
• Maximum turbo power: 55
• Processor base power: 25
• Display diagonal: 14
• Display resolution: 1920 x 1200
• Panel type: IPS
• HD type: WUXGA
• Touchscreen: Yes
• LED backlight: Yes
• Native aspect ratio: 16:10
• Anti-glare screen: Yes
• Display brightness: 500
• Colour gamut: 100
• RGB colour space: sRGB
• Maximum refresh rate: 60
• Contrast ratio (typical): 1500:1
• Product type: Laptop
• Product colour: Black
• Form factor: Clamshell
• Housing material: Carbon fibre,Aluminium
• Copilot+ PC: Yes
• Neural processor unit (NPU): Intel AI Boost
• Sparsity support: Yes
• Windows Studio effects support: Yes
• AI software frameworks supported by NPU: ONNX RT/OpenVINO/WebNN/Windows ML
• NPU performance up to: 49
• GPU performance up to: 40
• Internal memory: 32
• Internal memory type: LPDDR5x-SDRAM
• Memory clock speed: 7467
• Memory form factor: On-board
• Maximum internal memory: 32
• Memory channels: Dual-channel
• Total storage capacity: 1000
• Storage media: SSD
• Total SSDs capacity: 1000
• Number of SSDs installed: 1
• SSD capacity: 1000
• NVMe: Yes
• SSD interface: PCI Express 5.0
• M.2 SSD size: 2280 (22 x 80 mm)
• SSD form factor: M.2
• On-board GPU manufacturer: Intel
• On-board graphics card: Yes
• On-board graphics card family: Intel Graphics
• On-board graphics card model: Intel Graphics
• Ray tracing acceleration: Yes
• Audio chip: Cirrus Logic CS42L45
• Audio system: Dolby Atmos
• Number of built-in speakers: 2
• Speaker power: 2
• Built-in microphone: Yes
• Number of microphones: 2
• Front camera: Yes
• Front camera resolution (numeric): 10
• Infrared (IR) camera: Yes
• Privacy camera: Yes
• Privacy type: Privacy shutter
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Antenna type: 2x2
• WLAN controller manufacturer: Intel
• WLAN controller model: Intel Wi-Fi 7 BE211
• Bluetooth: Yes
• Bluetooth version: 5.4
• WWAN: Upgradable
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• HDMI ports quantity: 1
• HDMI version: 2.1
• Thunderbolt 4 ports quantity: 3
• Intel Thunderbolt 4: Yes
• Combo headphone/mic port: Yes
• USB Type-C DisplayPort Alternate Mode: Yes
• USB Sleep-and-Charge: Yes
• USB Sleep-and-Charge ports: 1
• Motherboard chipset: Intel SoC
• Pointing device: ThinkPad UltraNav
• Keyboard backlit: Yes
• Spill-resistant keyboard: Yes
• Keyboard language: English
• Copilot key: Yes
• Operating system architecture: 64-bit
• Operating system language: English/ROM
• Operating system installed: Windows 11 Pro
• Bundled software: Lenovo AI Now
• Battery technology: Lithium-Ion (Li-Ion)
• Battery capacity: 58
• Fast charging: Yes
• AC adapter power: 65
• AC adapter frequency: 50/60
• AC adapter input voltage: 100 - 240
• USB Type-C charging port: Yes
• USB Type-C required charging power (max): 65
• USB Type-C required charging power (min): 15
• USB Power Delivery (USB PD): Yes
• Cable lock slot: Yes
• Cable lock slot type: Kensington
• Fingerprint reader: Yes
• Windows Hello: Yes
• Trusted Platform Module (TPM): Yes
• Trusted Platform Module (TPM) version: 2.0
• Password protection: Yes
• Password protection type: BIOS/Power on/Supervisor
• Operating temperature (T-T): 5 - 35
• Storage temperature (T-T): 5 - 43
• Operating relative humidity (H-H): 8 - 95
• Storage relative humidity (H-H): 5 - 95
• Maximum shipping altitude: 3048
• Certification: ENERGY STAR 9.0 EPEAT Gold Registered ErP Lot 6/26 RoHS compliant TCO Certified, generation 10 Intel Evo Platform Eyesafe Certified 2.0 SGS High Performance Al PC Certification 2.0 MIL-STD-810H military test passed
• Width: 312.5
• Depth: 215.75
• Height (front): 7.7
• Height (rear): 14.3
• Weight: 998
• AC adapter included: Yes
• Units per Pallet: 0
• Units per Shipping Box: 1
• Unit Calculated Volume: 0.01216
• Unit Calculated Weight: 2.8
• NB Family name: ThinkPad
